BENTLY NEVADA 3500/42-04-00 Vibration Monitoring Module PLC wei
BENTLY NEVADA 3500/42-04-00

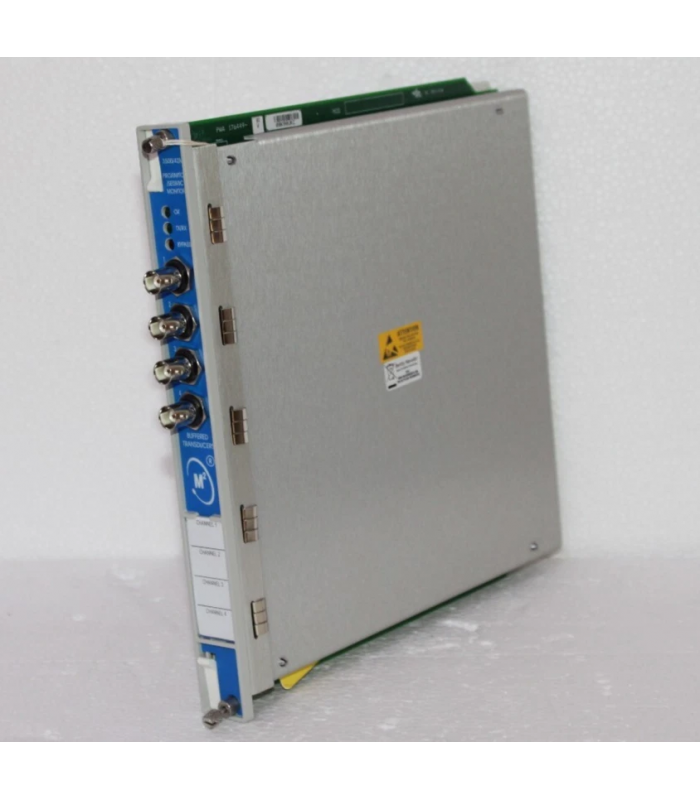

Vibration Monitoring Module for Critical Machinery
Product Overview
The BENTLY 3500/42-04-00 is a high-performance vibration monitoring module designed for continuous condition monitoring and protection of critical rotating machinery. As part of the BENTLY 3500 Monitoring System, it provides precise measurement and analysis of vibration signals to detect potential issues before they lead to costly downtime.
Key Functions
- Vibration amplitude and phase measurement
- Spectral analysis and orbit plotting
- Bearing condition monitoring
- Shaft position and eccentricity measurement
- Real-time alarm detection and annunciation
Module Features
- Four independent channels for multi-probe configurations
- Configurable for proximity probes, velocity sensors, or accelerometers
- High-speed data acquisition and processing
- Redundant communication interfaces
- Hot-swappable design for easy maintenance
Technical Specifications
General Specifications
| Module Type: | Vibration Monitoring |
| Channels: | 4 independent channels |
| Input Types: | Proximity probes, velocity transducers, accelerometers |
| Measurement Parameters: | Displacement, velocity, acceleration, phase |
| Display Resolution: | 0.001 mils or 0.01 μm |
| Update Rate: | 10 Hz (minimum) |
Performance Specifications
| Frequency Response: | 0.5 Hz to 10 kHz (adjustable) |
| Amplitude Range: | 0-250 mils pk-pk (displacement) |
| Accuracy: | ±1% of full scale |
| Phase Accuracy: | ±2° |
| Noise: | <0.5% of full scale |
| Sampling Rate: | Up to 100 kHz per channel |
System Integration
| Communication: | Ethernet, RS-485 |
| Protocol: | Modbus TCP/RTU, OPC UA |
| Power Supply: | 18-32 VDC, 1.5 A max |
| Operating Temp: | -20°C to +60°C |
| Dimensions: | 133.4 mm x 177.8 mm x 22.2 mm |
| Weight: | 0.5 kg |
Alarm & Outputs
| Alarm Relays: | 4 programmable relays per channel |
| Analog Outputs: | 2 x 4-20 mA per channel |
| Digital Outputs: | 2 per channel |
| Alarm Setpoints: | 4 per channel (warning, alarm, danger, shutdown) |
| Response Time: | <100 ms |
| Self-Diagnostics: | Continuous module health monitoring |
Key Features & Benefits
Advanced Vibration Analysis
Comprehensive analysis capabilities including time domain, frequency domain, and orbit analysis to detect machinery issues such as imbalance, misalignment, and bearing wear.
Multi-Level Alarm System
Configurable alarm setpoints with hysteresis and deadband features for reliable machinery protection and early warning of potential issues.
High-Speed Signal Processing
Powerful digital signal processing engine for real-time data acquisition and analysis, ensuring timely detection of machinery faults.
Flexible Configuration
User-configurable parameters allow customization for various machinery types and applications, providing maximum flexibility for different monitoring needs.
Application Scenarios
System Integration
The 3500/42-04-00 module integrates seamlessly with the BENTLY 3500 Monitoring System, providing a complete solution for machinery protection and condition monitoring. It can also interface with various industrial systems and software:
BENTLY Software
PLC & DCS Systems
SCADA Systems
Data Historians
Analytics Platforms
