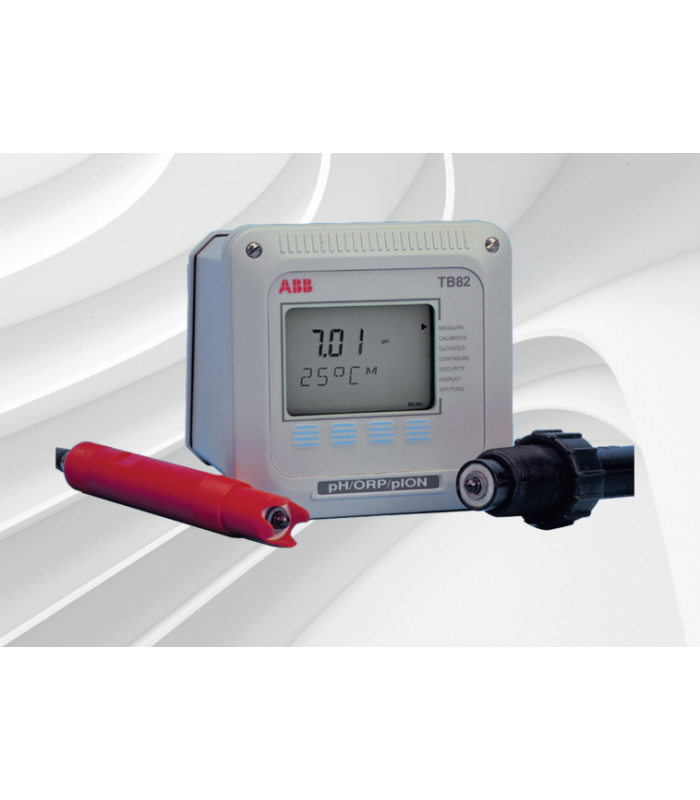

ABB TB82PH2110430 2-Wire pH/ORP/pION Transmitter

  • 0 reviews
  • Write a review
    • Product Code: TB82PH2110430
    • Availability: In Stock


    ABB TB82PH2110430 Technical Documentation

    ABB TB82PH2110430

    2-Wire pH/ORP/pION Transmitter

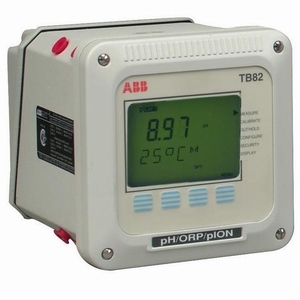

    ABB TB82PH Transmitter

    Product Overview

    The ABB TB82PH2110430 is a rugged, two-wire transmitter designed for precise measurement and control of pH, Oxidation-Reduction Potential (ORP), and ion-selective (pION) parameters in industrial processes. This transmitter is part of ABB's Advantage Series™ and is engineered to withstand the harshest environments while providing reliable and accurate measurements.

    Key Features

    • Intuitive user interface with easy-to-use menus
    • Advanced digital communications (HART, Foundation Fieldbus, PROFIBUS PA)
    • NEMA 4X/IP65 housing for harsh environments
    • Large, easy-to-read display with primary and secondary measurements
    • Programmable security codes to prevent unauthorized modifications
    • Intrinsically safe, non-incendive design for hazardous areas
    • Loop-powered transmitter reducing installation costs

    Applications

    Chemical Processing

    Precise pH control in chemical reactions, neutralization processes, and effluent treatment.

    Water & Wastewater Treatment

    Monitoring and controlling pH levels in drinking water, wastewater, and industrial effluent.

    Power Generation

    Boiler water treatment, cooling tower monitoring, and flue gas desulfurization.

    Pulp & Paper

    Process control in bleaching, cooking, and papermaking operations.

    Technical Specifications

    Parameter Value
    Measurement Type pH, ORP (Redox), pION
    pH Range -2.00 to +16.00 pH (0 to 14 pH standard range)
    ORP Range -1999 to +1999 mV
    pION Range -1999 to +1999 mV
    Temperature Range 0 to 140°C (32 to 284°F)
    Power Requirements 13.5 to 55 VDC (13.5 to 42 VDC for agency certified applications)
    Current Consumption 15 mA quiescent current
    Output Signal 4-20 mA with HART protocol
    Display Large LCD with primary and secondary measurement displays
    Environmental Rating NEMA 4X/IP65
    Operating Temperature -20°C to 60°C (-4°F to 140°F)
    Storage Temperature -40°C to 70°C (-40°F to 158°F)
    Dimensions 144 mm x 144 mm x 171 mm (5.67" x 5.67" x 6.75")
    Weight 1.9 kg (4.2 lb) without mounting hardware
    Note: For detailed specifications on communication protocols (HART, Foundation Fieldbus, PROFIBUS PA), please refer to the separate communication protocol documentation.

    Installation Instructions

    Warning: Before installation, ensure all voltage sources (supply and process voltage) are switched off. Failure to do so may result in electric shock, equipment damage, or explosion in hazardous areas.

    Mounting Options

    1

    Wall Mounting

    Use the mounting holes on the back of the transmitter housing. Recommended screws: M4 or #8. Ensure the mounting surface is flat and can support the transmitter weight.

    2

    Pipe Mounting

    Use the optional pipe mounting kit (order separately). The kit allows mounting on pipes with diameters from 1" to 2" (25 mm to 50 mm).

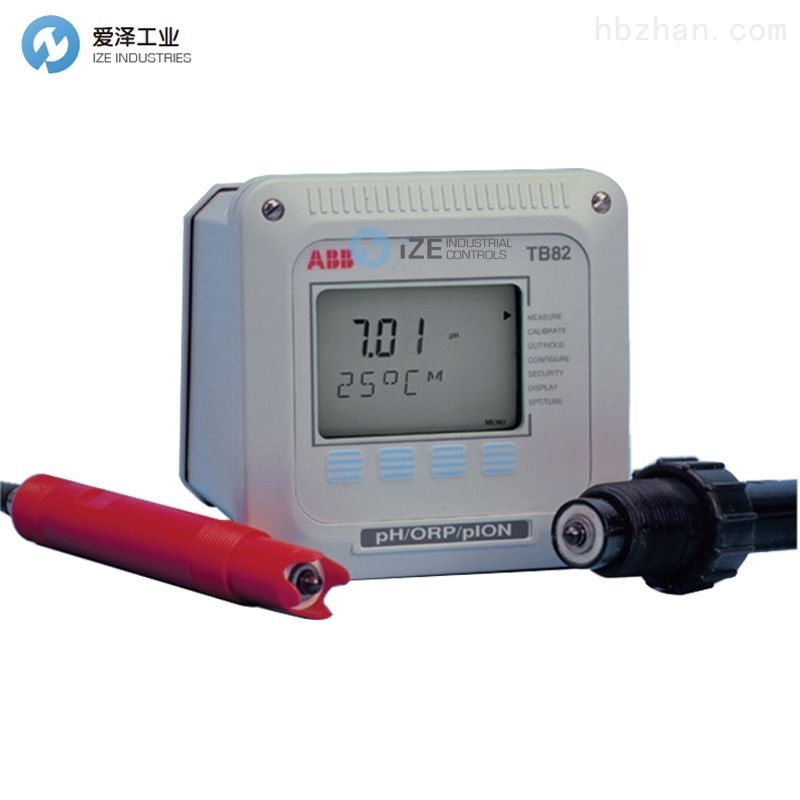

    ABB TB82PH with Sensor

    Fig. 1: ABB TB82PH transmitter with pH sensor

    Electrical Connections

    1

    Power Supply Connection

    The transmitter is loop-powered (two-wire device) and requires 13.5 to 55 VDC. Connect the power supply to terminals L+ (+24 VDC) and M (0 VDC).

    2

    Sensor Connection

    Connect the pH/ORP/pION sensor to the appropriate terminals. Refer to the terminal block diagram in the user manual for specific wiring details.

    Note: Maximum sensor cable length is 100 ft (30.5 m). For longer distances, use signal conditioners or extension cables approved by ABB.
    3

    Communication Connection

    If using digital communication (HART, Foundation Fieldbus, PROFIBUS PA), connect the communication lines according to the selected protocol specifications.

    Warning: Do not connect any voltages or signals to reserved terminals (marked with ---). Reserved terminals may carry internal voltages that could cause injury or equipment damage.

    Configuration and Calibration

    Configuration

    The TB82PH2110430 can be configured using either the front panel pushbuttons or through digital communication (HART, Foundation Fieldbus, PROFIBUS PA). The intuitive menu system guides the user through setup, calibration, and maintenance procedures.

    1

    Basic Configuration

    • Select measurement type (pH, ORP, or pION)
    • Configure temperature compensation mode
    • Set output range and scaling
    • Configure display options
    2

    Advanced Configuration

    • Set security codes to prevent unauthorized access
    • Configure alarm settings and relay outputs (if applicable)
    • Set up digital communication parameters
    • Configure diagnostic functions
    Note: Foundation Fieldbus, PROFIBUS PA models, and HART are available only in advanced mode.

    Calibration

    The transmitter supports both one-point and two-point calibration methods. For accurate measurements, regular calibration is recommended.

    1

    One-Point Calibration

    Used to adjust for offsets that may occur when the sensor is in process. Immerse the sensor in a single buffer solution and follow the menu prompts.

    2

    Two-Point Calibration

    Provides higher accuracy across the entire measurement range. Immerse the sensor in two different buffer solutions (typically pH 4.01 and pH 7.00 or pH 7.00 and pH 10.01) and follow the menu prompts.

    Note: When initiating a two-point calibration, the user has the option to hold the analog output at a defined level.
    3

    Factory Reset

    If necessary, the transmitter can be easily reset back to factory calibration settings through the menu system.

    Diagnostics and Maintenance

    Diagnostic Features

    The TB82PH2110430 includes comprehensive diagnostic functions to help identify and troubleshoot issues with the transmitter, sensor, or process.

    • Sensor error detection (open circuit, short circuit)
    • Out-of-range measurements
    • Temperature sensor diagnostics
    • Loop current monitoring
    • Communication status indicators
    • Calibration due reminders

    Maintenance Recommendations

    1

    Regular Sensor Maintenance

    Clean the sensor regularly according to the process conditions. Replace the sensor when response time deteriorates or calibration cannot be achieved within acceptable limits.

    2

    Transmitter Inspection

    Periodically inspect the transmitter housing for damage and ensure the seals are intact to maintain the NEMA 4X/IP65 rating.

    3

    Calibration Verification

    Verify calibration regularly using standard buffer solutions. The frequency depends on the process conditions and accuracy requirements.

    Warning: The device must not be opened when in operation. Disconnect all power before performing any maintenance procedures.

    Certifications and Compliance

    International Certifications

    • CE Mark
    • CSA Certified
    • FM Approved
    • ATEX Certified
    • FISCO Certified
    • UL Listed

    Compliance Standards

    • EN 61326-1: Electrical equipment for measurement, control, and laboratory use - EMC requirements
    • EN 61010-1: Safety requirements for electrical equipment for measurement, control, and laboratory use
    • ANSI/ISA-50.00.01: Industrial instrumentation wiring and installation practices
    • IEC 61508: Functional safety of electrical/electronic/programmable electronic safety-related systems
    Note: For detailed information about specific certifications and their scope, please refer to the certification documents available from ABB or your local ABB representative.

    Ordering Information

    Model Number Breakdown

    The model number TB82PH2110430 can be broken down as follows:

    Position Code Description
    1-4 TB82 Product Series
    5-7 PH Measurement Type (pH/ORP/pION)
    8 2 Housing Type
    9 1 Power Supply
    10 1 Output Configuration
    11 0 Display Type
    12 4 Communication Protocol
    13 3 Approvals/Certifications
    14 0 Options

    Accessories and Spare Parts

    The following accessories and spare parts are available for the TB82PH2110430 transmitter:

    • pH/ORP/pION sensors (various types for different applications)
    • Sensor cables and extensions
    • Mounting hardware (wall and pipe mounting kits)
    • Calibration buffers and solutions
    • Sensor cleaning and maintenance kits
    • Replacement display modules
    • Terminal blocks and connectors
    Note: For detailed ordering information, please contact your local ABB representative or visit the ABB website.

    ABB Measurement & Analytics

    For more information, please visit www.abb.com/measurement

    © 2025 ABB. All rights reserved.
