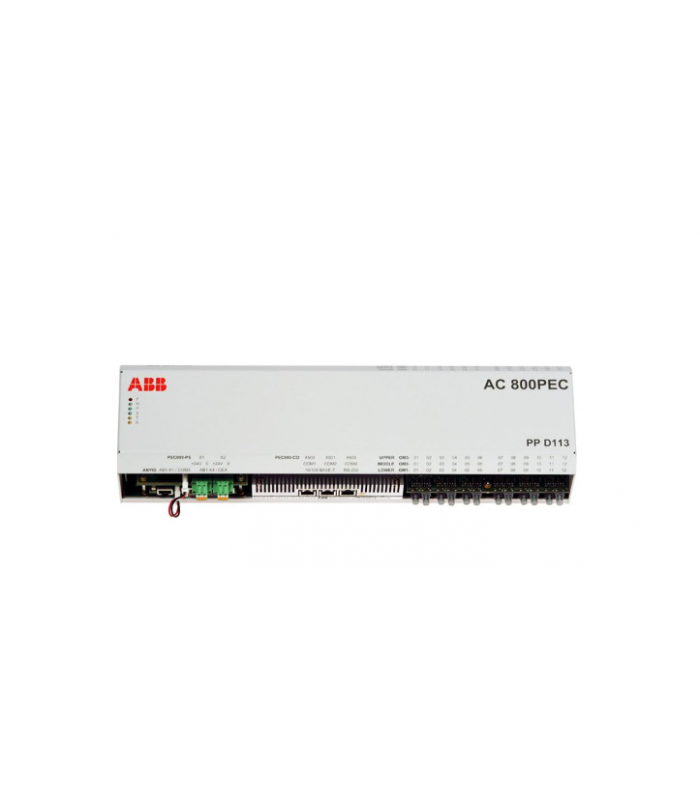

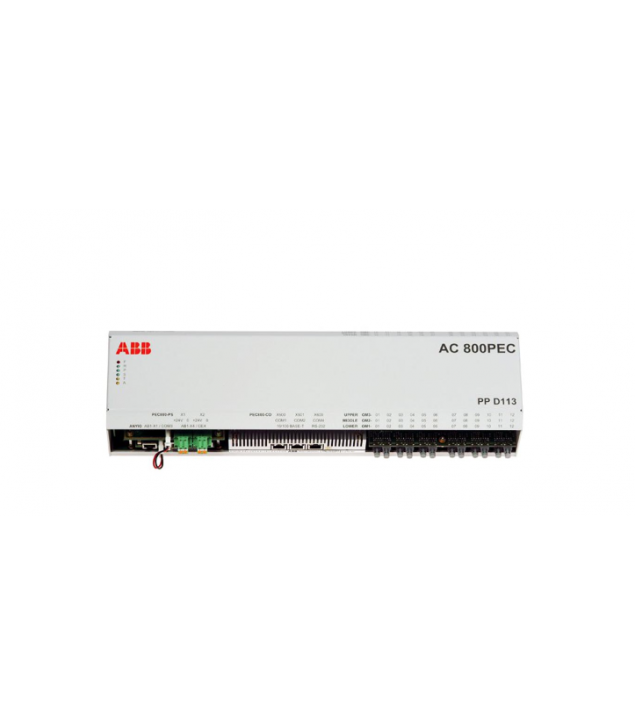

    Intermediate Document: ABB PPD113B03-10110110

    This document provides technical specifications and operational parameters for the ABB PPD113B03-10110110, a high-performance power distribution module designed for industrial automation systems.

    1. Electrical Specifications

    Input Voltage

    3-phase AC 400V ±10%, 50/60Hz

    Rated Current

    16A per phase, maximum continuous load

    Output Voltage

    3-phase AC 400V ±2% (regulated)

    Protection Ratings

    IP20 (enclosure), IEC 61800-5-1 compliant

    2. Operational Parameters

    • Operating Temperature: -10°C to +55°C (ambient); derating required above 40°C
    • Humidity Range: 5% to 95% RH, non-condensing
    • MTBF (Mean Time Between Failures): ≥100,000 hours at 40°C ambient
    • Response Time: ≤20ms for overcurrent protection
    • Communication Interface: Modbus RTU (RS485), PROFINET optional

    3. Document Metadata

    Document Number PPD113B03-10110110-INT-002
    Revision A.01
    Issue Date 2024-05-22
    Applicable Product Series PPD113B03 Series Power Distribution Units

    This intermediate document is subject to revision. For complete information, refer to the official ABB PPD113B03 Series Technical Datasheet (Document ID: PPD113B03-DS-001).
