WOODWARD PEAK200 Power Supply
- Product Code: PEAK200
- Availability: In Stock

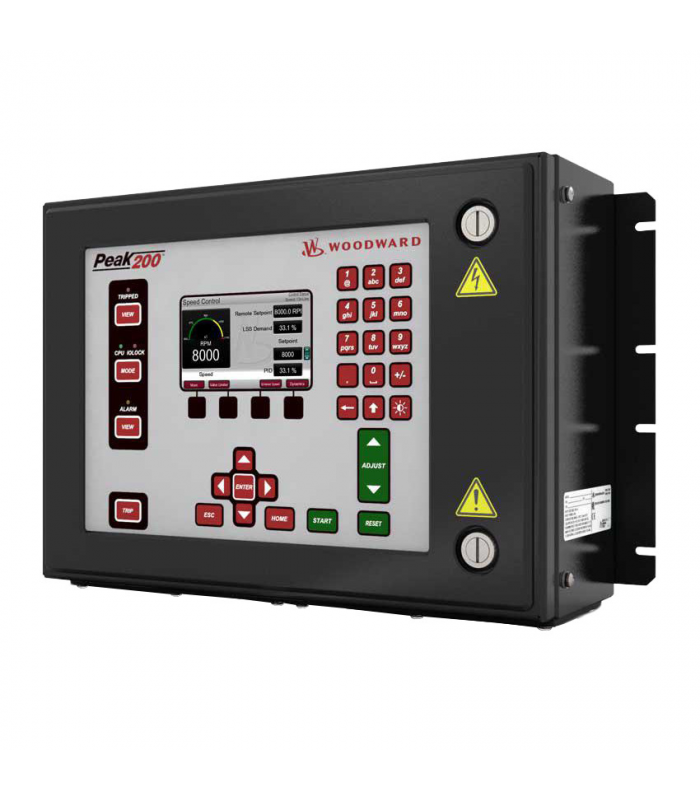

WOODWARD PEAK200
Advanced Power Management and Energy Control System
Product Overview
The WOODWARD PEAK200 is an advanced power management and energy control system designed for industrial and commercial power generation applications. This sophisticated control system provides comprehensive monitoring, protection, and optimization capabilities for gensets, renewable energy systems, and microgrids.
Part of Woodward's industry-leading power control portfolio, the PEAK200 incorporates state-of-the-art digital signal processing, advanced control algorithms, and comprehensive communication capabilities. Its modular design and flexible configuration options make it suitable for a wide range of power generation and distribution applications.
This power management system offers superior performance with its real-time monitoring, precise power regulation, and intelligent load management functions, making it an ideal solution for modern power systems requiring reliable operation, efficient energy utilization, and seamless integration of distributed energy resources.
Technical Specifications
Processor and Memory
- Processor: Dual-core ARM Cortex
- Clock Speed: 1.2 GHz
- RAM: 1 GB DDR3
- Storage: 8 GB flash memory
- Expandable Storage: SD card slot
Power Supply
- Voltage Range: 18-32 V DC
- Current Consumption: 0.8 A typical
- Power Consumption: 15 W typical
- Backup: Internal supercapacitor
- Efficiency: > 90%
Analog Inputs
- Number: 16 channels
- Range: 0-10 V, 4-20 mA
- Resolution: 16-bit
- Accuracy: ±0.1%
- Input Impedance: 10 kΩ (voltage)
Digital I/O
- Digital Inputs: 24 channels, 24 V DC
- Digital Outputs: 16 channels, 24 V DC, 2 A
- Relay Outputs: 8 channels, 250 V AC, 5 A
- Response Time: < 1 ms
- Protection: Short-circuit, overcurrent
Communication
- Ethernet: 2 x 10/100/1000 Base-T
- Serial: 2 x RS-232, 2 x RS-485
- Fieldbus: Profibus DP, Modbus RTU/TCP
- Wireless: Optional Wi-Fi, 4G/5G
- Expansion: Optional communication modules
Environmental Parameters
- Operating Temperature: -30°C to +70°C
- Storage Temperature: -40°C to +85°C
- Humidity: 5-95% RH, non-condensing
- Vibration: 5-500 Hz, 10 g RMS
- IP Rating: IP54 front panel
Product Features
Advanced Power Management
Comprehensive power management capabilities including load sharing, frequency regulation, voltage control, and power factor optimization for efficient and stable power generation.
Real-Time Monitoring
Continuous monitoring of electrical parameters, system status, and equipment health with high-speed data acquisition and advanced analytics for proactive maintenance.
Comprehensive Protection
Advanced protection functions including overcurrent, overvoltage, undervoltage, frequency deviation, reverse power, and thermal protection for safe and reliable operation.
Renewable Integration
Seamless integration with renewable energy sources including solar, wind, and battery storage systems with advanced grid-forming and grid-following capabilities.
Flexible Configuration
Modular design with configurable I/O, communication options, and application-specific function blocks allowing customization for various power system architectures.
Intelligent Load Management
Sophisticated load shedding, load prioritization, and peak shaving algorithms to optimize generator utilization and reduce fuel consumption.
Advanced Diagnostics
Comprehensive diagnostic capabilities including event logging, trend analysis, and predictive maintenance functions to maximize system availability and reduce downtime.
Multi-Protocol Communication
Extensive communication capabilities supporting multiple industrial protocols for seamless integration with existing SCADA, DCS, and energy management systems.
Applications
Industrial Power Generation
Control and management of on-site power generation systems for industrial facilities, manufacturing plants, and critical infrastructure requiring reliable backup power.
Commercial Buildings
Power management for commercial buildings, data centers, and healthcare facilities requiring uninterrupted power supply and efficient energy utilization.
Microgrids
Control and coordination of microgrid systems integrating multiple distributed energy resources including generators, renewable energy, and energy storage.
Remote Power Systems
Management of remote power generation systems for telecommunications, mining operations, and off-grid communities requiring autonomous operation.
Renewable Energy Integration
Control systems for renewable energy installations including solar farms, wind farms, and hybrid renewable power plants requiring grid connection and power quality management.
Emergency Power Systems
Critical power management for emergency backup systems in hospitals, emergency services, and other facilities requiring rapid response and reliable operation.
Utility Applications
Grid support services, peak shaving, and demand response applications for utility companies and grid operators.
Marine and Offshore
Power management systems for marine vessels, offshore platforms, and floating production facilities requiring robust and reliable operation in harsh environments.
Technical Details
Control Architecture
- Processor: Dual-core ARM Cortex A9
- Real-Time Clock: Hardware RTC with battery backup
- Operating System: Linux-based real-time OS
- Programming: IEC 61131-3 compliant
- Cycles: 1 ms minimum control cycle
Measurement Capabilities
- Voltage Measurement: 0.2% accuracy
- Current Measurement: 0.2% accuracy
- Power Measurement: 0.5% accuracy
- Frequency: 0.01 Hz resolution
- Harmonics: Up to 50th harmonic analysis
Communication Protocols
- Ethernet: Modbus TCP, EtherNet/IP, Profinet
- Serial: Modbus RTU, DNP3, ASCII
- Fieldbus: Profibus DP, DeviceNet
- Wireless: Modbus TCP over Wi-Fi/4G
- Web Server: Embedded HTML5 web interface
Programming Features
- Languages: LD, FBD, ST, IL, SFC
- Function Blocks: Power management library
- Variables: 10,000+ configurable variables
- Data Logging: 100+ configurable loggers
- Trends: Real-time and historical trending
Protection Functions
- Overcurrent: Instantaneous, inverse time
- Voltage Protection: Over/under voltage
- Frequency Protection: Over/under frequency
- Power Protection: Reverse power, underpower
- Transformer Protection: Differential, thermal
Certifications and Standards
- Safety: UL 508, CE, cUL
- EMC: IEC 61000-6-2, IEC 61000-6-4
- Environmental: RoHS, REACH compliant
- Quality: ISO 9001, ISO 14001
- Industry: IEC 61131-3, IEEE standards
Installation and Maintenance
Installation Guidelines
The WOODWARD PEAK200 should be installed by qualified personnel following Woodward's installation instructions and applicable safety standards. Proper installation is essential for reliable operation and system performance.
Key installation considerations include: appropriate mounting location, proper grounding, correct wiring practices, adequate clearance for ventilation, environmental protection, and compliance with local electrical codes. The system should be installed in a clean, dry environment with proper access for maintenance and operation.
Ordering Information
Model Description
Complete Model Number: PEAK200
Product Series: Woodward Power Management Systems
Configuration: Standard control unit
Power Supply: 18-32 V DC
I/O Configuration: 16AI/24DI/16DO/8RO
Optional accessories: Communication modules, I/O expansion units, operator interfaces, programming cables, and software packages can be ordered separately to meet specific application requirements.
Woodward Industrial Automation
Power Management and Control Solutions
Document Number: PEAK200-DOC
Revision Date: 2025
