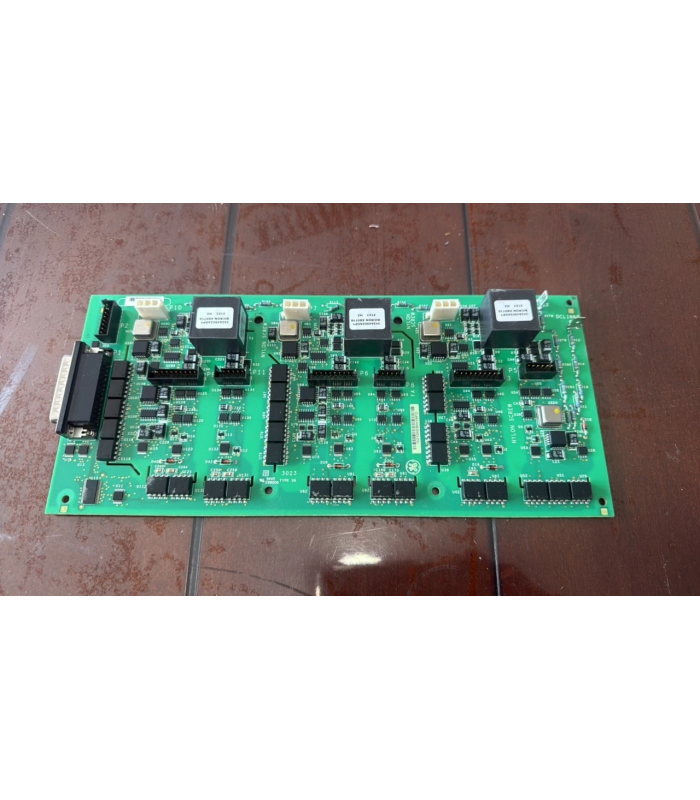

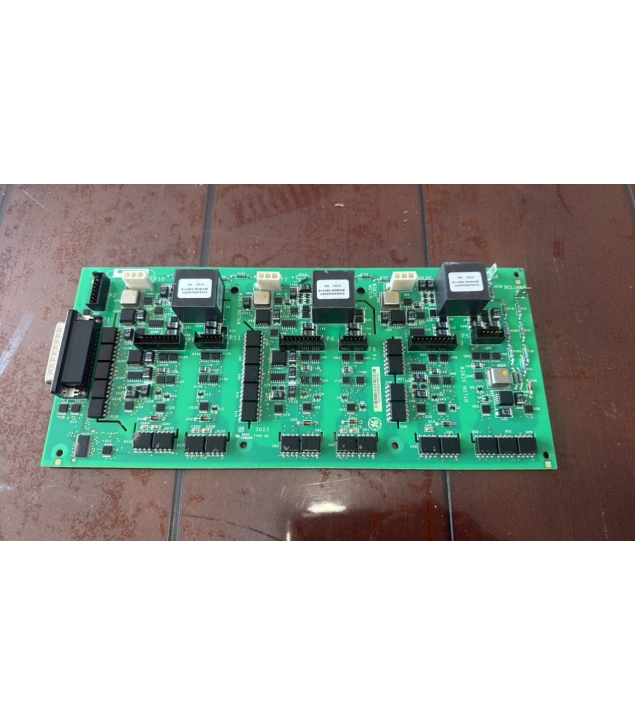

GE IS210MVRCH1A High-performance Motor
- Product Code: IS210MVRCH1A
- Availability: In Stock
GE IS210MVRCH1A
Overview
The GE IS210MVRCH1A is a high-performance Motor Voltage Regulator (MVR) module designed for use in GE's Mark VIe and Mark VIe* control systems. It provides precise voltage regulation and control for industrial motors, ensuring optimal performance and protection in power generation and heavy industrial applications.
Key Features
- Precision Voltage Regulation: Maintains stable motor voltage under varying load conditions, ensuring consistent motor performance and efficiency.
- Advanced Control Algorithms: Utilizes sophisticated control algorithms to provide fast response to voltage fluctuations and disturbances.
- Wide Input Range: Accepts a wide range of input voltages, making it suitable for diverse industrial applications and power systems.
- Comprehensive Protection: Includes overvoltage, undervoltage, overcurrent, and short-circuit protection to safeguard motors and connected equipment.
- Digital Communication: Features digital communication interfaces for seamless integration with control systems and remote monitoring.
- LED Status Indicators: Provides visual indication of operational status, fault conditions, and diagnostic information.
- Hot-Swappable Design: Allows for replacement without system shutdown, minimizing downtime during maintenance or upgrades.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input Voltage | 100-240V AC, 50/60Hz |
| Output Voltage | Adjustable 0-100% of rated voltage |
| Voltage Regulation Accuracy | ±0.5% of setpoint |
| Frequency Response | DC to 10kHz |
| Output Current | Up to 5A continuous |
| Control Interface | Analog inputs (0-10V, 4-20mA) and digital I/O |
| Communication | Modbus RTU, Ethernet/IP, Profibus DP |
| Operating Temperature | -20°C to +60°C |
| Humidity | 5-95% non-condensing |
| Dimensions | 177.8mm x 101.6mm x 50.8mm (7" x 4" x 2") |
| Weight | Approximately 1.2kg (2.65lbs) |
Typical Applications
- Large industrial motor control systems
- Power generation turbine control
- HVAC systems requiring precise motor control
- Industrial pumps and compressors
- Conveyor systems and material handling equipment
- Manufacturing machinery with critical motor requirements
System Compatibility
The IS210MVRCH1A is designed to be fully compatible with:
- GE Mark VIe and Mark VIe* control systems
- Speedtronic™ turbine control platforms
- Proficy® HMI/SCADA - CIMPLICITY
- GE's Series 90-70 and RX3i PLC systems
- Other industrial control systems via standard communication protocols
Installation & Maintenance
Key installation and maintenance considerations:
- DIN rail or panel mountable design
- Front-panel accessible configuration and diagnostic ports
- Field-replaceable components for simplified maintenance
- Compliance with CE, UL, and CSA safety standards
- RoHS compliant materials and construction
