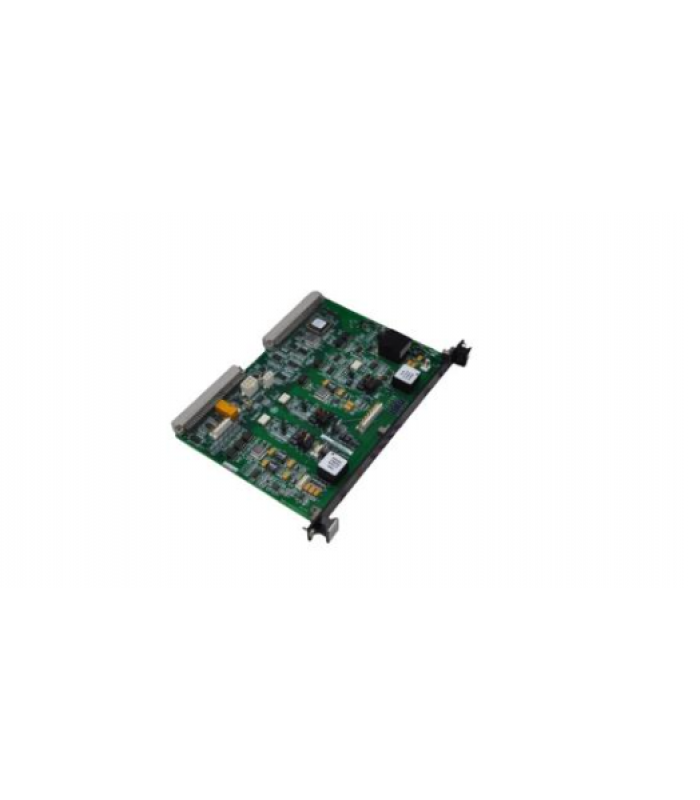

GE IS200ERDDH1A Digital Output Module
- Product Code: IS200ERDDH1A
- Availability: In Stock
GE IS200ERDDH1A
Overview
The GE IS200ERDDH1A is a high-performance digital output module designed for use in GE's Mark VIe and Mark VIe* control systems. It provides reliable switching capabilities for industrial applications, including power generation, manufacturing, and process control environments.
Key Features
- High-Density Design: Offers 32 isolated digital output channels in a single module, maximizing I/O capacity while minimizing panel space requirements.
- Optical Isolation: Each channel features optical isolation to protect against electrical interference and voltage transients, ensuring signal integrity and system reliability.
- Relay Outputs: Utilizes high-quality electromechanical relays capable of switching both AC and DC loads, with a contact rating of up to 5A at 250VAC/30VDC.
- LED Indicators: Includes channel status LEDs for visual monitoring of output states, simplifying troubleshooting and maintenance.
- Hot-Swappable: Supports hot-swapping capabilities, allowing module replacement without shutting down the entire control system, reducing downtime.
- Diagnostic Capabilities: Provides comprehensive diagnostic features, including open-circuit and short-circuit detection, to identify potential issues proactively.
Technical Specifications
| Parameter | Specification |
|---|---|
| Number of Outputs | 32 channels |
| Output Type | Relay (Form A - SPST NO) |
| Contact Rating | 5A @ 250VAC / 30VDC |
| Isolation | 2500Vrms optical isolation |
| Switching Time | <10ms (typical) |
| Response Time | <20ms (including diagnostics) |
| Power Supply | 24VDC ±10%, 100mA max |
| Operating Temperature | -40°C to +70°C |
| Humidity | 5% to 95% non-condensing |
Typical Applications
- Turbine and generator control systems
- Industrial automation and process control
- Power distribution and switchgear control
- Motor control centers and valve actuation
- Safety shutdown and emergency stop systems
System Compatibility
The IS200ERDDH1A is designed to be fully compatible with:
- GE Mark VIe and Mark VIe* control systems
- Speedtronic™ turbine control platforms
- Proficy® HMI/SCADA - CIMPLICITY
- GE's Series 90-70 and RX3i PLC systems
Installation & Maintenance
Key installation and maintenance considerations:
- Standard DIN rail mounting for easy installation
- Front-panel accessible terminal blocks for wiring
- Field-replaceable relay contacts for simplified maintenance
- Compliance with CE, UL, and CSA safety standards
