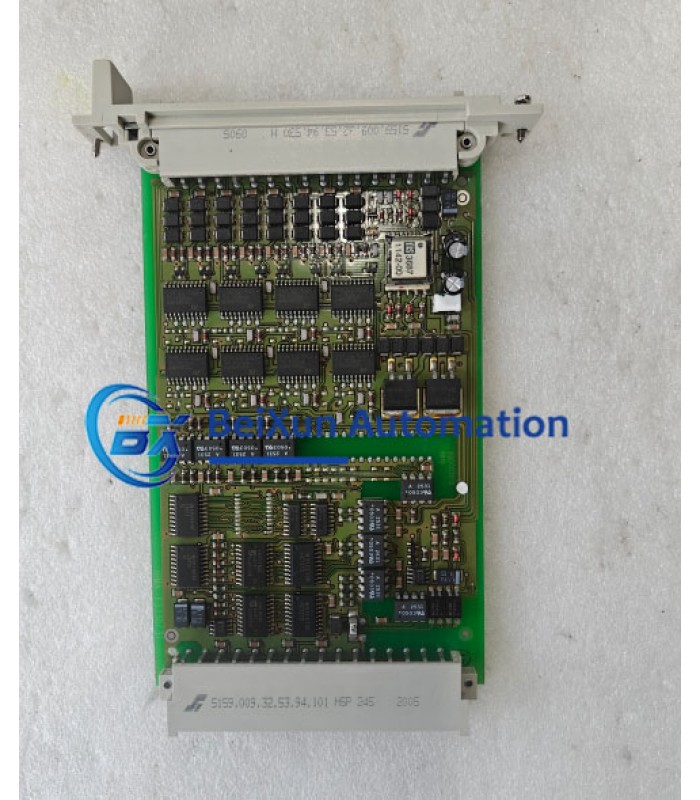

HIMA F3330 8-Channel Digital Output Module
- Product Code: F3330
- Availability: In Stock
HIMA F3330 Product Specifications
Product Code:
F3330
Manufacturer:
HIMA
Description:
8-Channel Digital Output Module
Product Series:
HIMatrix F Series
Safety Certification:
SIL 3 according to IEC 61508
Number of Outputs:
8 channels
Output Current:
500mA per channel (resistive load), 1A (inductive load)
Power Supply:
24V DC
Power Consumption:
5V DC: 110mA, 24V DC: 180mA
Dimensions (W×H×D):
70mm × 125mm × 90mm
Weight:
Approximately 0.6kg
Operating Temperature:
-25°C to +70°C
Storage Temperature:
-40°C to +85°C
Humidity Range:
5% to 95% non-condensing
Certifications:
CE, cULus, ATEX, IECEx
Key Features
- 8-channel digital output module designed for safety-related applications
- Integrated safety shutdown functionality
- Safe isolation (Ex) for hazardous area applications
- Line short circuit monitoring (LS) for enhanced safety
- Line break monitoring (LB) for fault detection
- Suitable for both resistive and inductive loads up to 500mA (12W)
- Supports lamp connections up to 4W
- No output voltage when L-supply is disconnected
- High reliability and robustness for industrial environments
- Short circuit proof outputs with current limiting
- Fast response time with maximum 1ms polling time per channel
Technical Specifications
| Output Type | Digital outputs, short circuit protected |
| Load Capacity | Resistive: up to 500mA (12W), Inductive: up to 1A |
| Internal Voltage Drop | Maximum 2V at 500mA load |
| Admissible Line Resistance | Maximum 11 ohms (input + output) |
| Under Voltage Trip Point | ≤ 16V |
| Short Circuit Current Operation Point | 0.75 to 1.5A |
| Output Leakage Current | Maximum 350μA |
| Output Reset Voltage | Maximum 1.5V |
| Test Signal Duration | Maximum 200μs |
| Space Requirement | 4 TE (Terminal Equipment units) |
| Communication Interfaces | Safe Ethernet, Modbus TCP |
| Requirement Class | AK 1 ... 6 |
Applications
- Chemical and petrochemical industries
- Oil and gas production and refining
- Power generation facilities
- Pharmaceutical manufacturing
- Food and beverage processing
- Manufacturing automation
- Transportation systems
- Water and wastewater treatment
- Hazardous area applications requiring Ex certification
- Safety instrumented systems (SIS)
- Emergency shutdown systems (ESD)
Ordering Information
Part Number:
F3330
Product Family:
HIMatrix F Series
Country of Origin:
Germany
Packaging:
Original HIMA packaging
Warranty:
12 months from date of delivery
Availability:
In stock, typical lead time 1-10 business days
Accessories:
Mounting hardware, connection cables (sold separately)
Documentation:
User manual, safety documentation, and certification documents included
