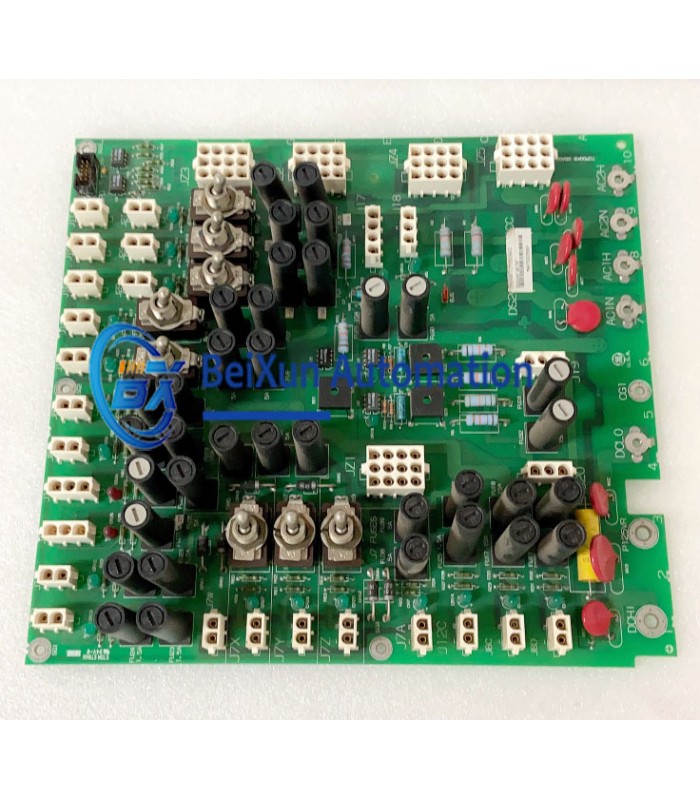

GE DS200TCPDG2BEC Turbine Control Printed Circuit Board
- Product Code: DS200TCPDG2BEC
- Availability: In Stock
GE DS200TCPDG2BEC
Turbine Control Printed Circuit Board
Product Overview
The GE DS200TCPDG2BEC is a high-performance turbine control printed circuit board designed specifically for GE's Mark V series turbine control systems. This advanced control board provides reliable power distribution and efficient operation of critical components in industrial environments, particularly in gas and steam turbine control applications.
As a key component of the Mark V system, this board ensures stable and efficient power distribution with its robust construction guaranteeing longevity and reliability under rigorous conditions. The compact design allows for easy installation and integration within existing systems.
Key Features
- Robust design for harsh industrial environments
- Compatibility with Mark V and Mark VI control systems
- Advanced diagnostics for system health monitoring
- Compact form factor for space-constrained installations
- High reliability with extended operational life
- Enhanced protection features for critical applications
Technical Specifications
Electrical Characteristics
| Input Voltage | 24 V DC |
| Output Current | 10 A |
| Communication Interface | RS-485 |
| Power Rating | 1.5 kW |
| Frequency | 50/60 Hz |
Physical Dimensions
| Width | 2.1 inches (53 mm) |
| Length | 18.8 inches (478 mm) |
| Height | 26.2 inches (665 mm) |
| Weight | 0.3 kg |
| Mounting | Panel-mount |
Environmental Ratings
| Operating Temperature | -10°C to +55°C |
| Storage Temperature | -40°C to +85°C |
| Relative Humidity | 5% to 95% (non-condensing) |
| Protection Rating | IP20 |
Signal Handling
| Analog Inputs | Multiple channels for sensor inputs |
| Digital Inputs/Outputs | Discrete control and monitoring |
| LVDT Inputs | Position sensing capability |
| Servo Valve Outputs | Precision control outputs |
Applications
The GE DS200TCPDG2BEC is specifically designed for use in gas and steam turbine control systems, finding primary application in:
- Power generation facilities
- Gas turbine power plants
- Steam turbine control systems
- Combined cycle power plants
- Industrial turbine applications
- Oil and gas processing facilities
- Petrochemical industry
This control board excels in improving system reliability and performance in these critical applications, ensuring efficient and safe turbine operation.
Functional Capabilities
Analog Signal Processing
Scales and conditions multiple analog signals including LVDT inputs, servo valve outputs, thermocouple inputs, 4-20 mA signals, and vibration inputs.
System Communication
Facilitates data exchange between system components through multiple communication interfaces and protocols.
Diagnostic Monitoring
Advanced diagnostics for system health monitoring, ensuring early detection of potential issues.
Power Distribution
Reliable power distribution to critical system components with overload protection.
Additional Information
Ordering Information
| Part Number | DS200TCPDG2BEC |
| Series | Mark V |
| Manufacturer | GE (General Electric) |
| Country of Origin | USA |
Warranty & Support
| Standard Warranty | 1 year |
| Extended Warranty | Available |
| Technical Support | 24/7 |
Certifications
- UL Listed
- CE Certified
- RoHS Compliant
Compatibility
- GE Mark V Turbine Control Systems
- GE Mark VI Control Systems
- Various GE Turbine Models
- Compatible with GE Digital Control Systems
