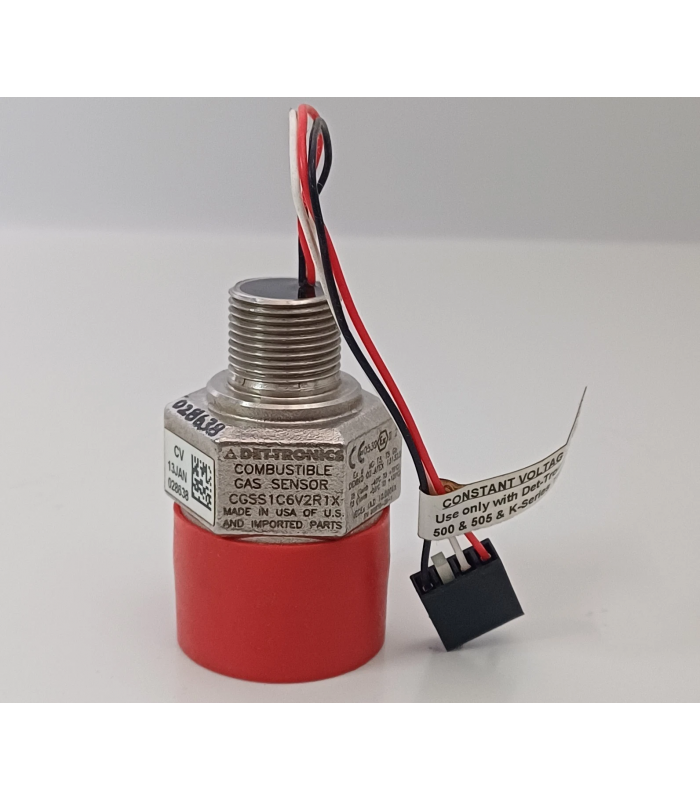

Det-Tronics CGSS1C6V2R1X Gas Detection Sensor Module
- Product Code: CGSS1C6V2R1X
- Availability: In Stock
Det-Tronics CGSS1C6V2R1X
Gas Detection Sensor Module - Technical Documentation
1. Basic Information
Model Number: CGSS1C6V2R1X
Manufacturer: Det-Tronics (a Honeywell company)
Product Category: Fixed Gas Detection Sensor
Product Status: In Stock / Active Production
Country of Origin: United States
2. Technical Specifications
Power Supply: 18-30 VDC (24 VDC nominal)
Detection Gas: Combustible Gases (LEL), Toxic Gases (CO, H2S, O2 optional)
Detection Range: 0-100% LEL (combustible), 0-500 ppm (CO), 0-200 ppm (H2S)
Accuracy: ±5% of reading (typical)
Response Time: < 30 seconds (T90)
Operating Temperature: -40°C to +70°C
Dimensions (W×H×D): 152mm × 127mm × 89mm
Weight: Approx. 1.2 kg
Output Signal: 4-20mA DC, Modbus RTU, HART (optional)
Protection Rating: IP66 / NEMA 4X
3. Application Scenarios
- Oil and gas exploration and production facilities
- Refineries and petrochemical plants
- Chemical manufacturing plants
- Power generation facilities (fossil fuel, biogas)
- Marine and offshore platforms
- Mining and metallurgical operations
4. Installation & Maintenance
Mounting Type: Wall / Pipe Mount (3/4" NPT thread)
Wiring: Explosion-proof conduit connections
Sensor Life: 2-5 years (depending on gas type and environment)
Calibration Interval: 6-12 months (per site requirements)
Certifications: ATEX, IECEx, UL/cUL, CSA, FM approved
Warranty Period: 24 months from delivery date
5. Important Notes
- Install the sensor in accordance with local safety codes and regulations.
- Perform regular calibration with certified gas mixtures to ensure accuracy.
- Do not install in areas with excessive vibration or corrosive atmospheres.
- Ensure proper grounding to prevent electrical interference and static discharge.
- Only qualified personnel should perform installation, calibration or maintenance.
