Enterasys A4H124-24TX Gigabit Ethernet Layer 3 Switch
- Product Code: A4H124-24TX
- Availability: In Stock

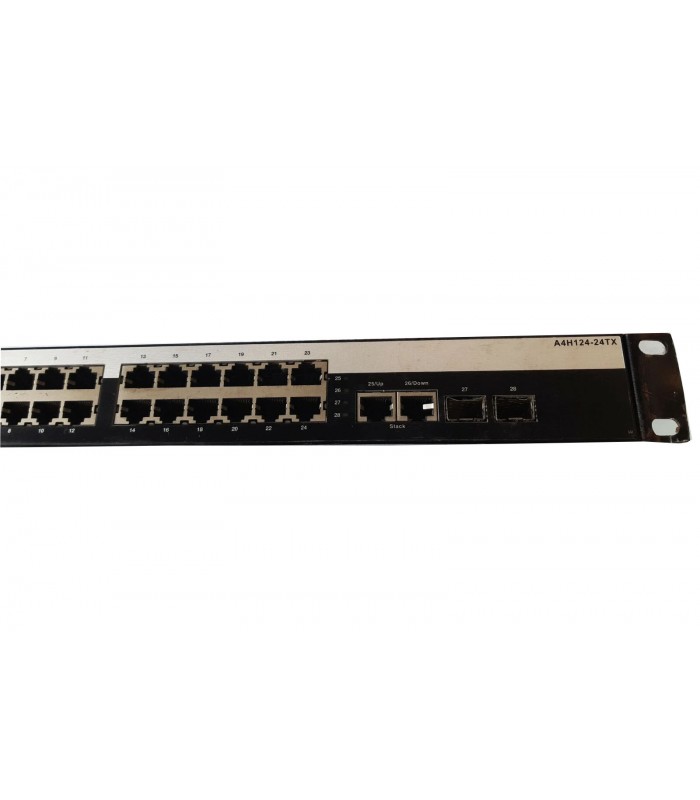

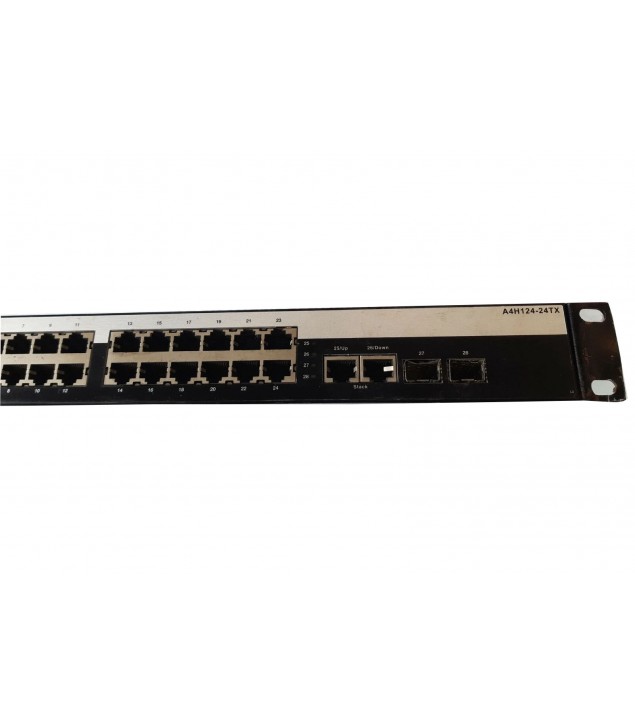

Enterasys A4H124-24TX
Gigabit Ethernet Layer 3 Switch
Product Overview
The Enterasys A4H124-24TX is a high-performance Gigabit Ethernet Layer 3 switch designed for enterprise networks requiring reliable connectivity and advanced traffic management. This compact switch offers 24 Gigabit copper ports with Power over Ethernet Plus (PoE+) capabilities, making it ideal for powering IP phones, wireless access points, and security cameras while delivering high-speed data transfer. Its robust Layer 3 routing features, advanced security protocols, and scalable design ensure seamless integration into medium to large network infrastructures, supporting both traditional and converged applications.
Key Features
- • 24 x 10/100/1000BASE-T PoE+ ports with 370W total power budget
- • 4 x SFP ports for fiber uplink connectivity
- • Advanced Layer 3 routing protocols (OSPF, RIP, BGP) and IPv4/IPv6 support
- • Comprehensive security features: 802.1X, MAC authentication, ACLs, and DDoS protection
- • Quality of Service (QoS) with 8 priority queues and traffic shaping
- • Stackable design supporting up to 8 units for easy scalability
Technical Specifications
| Parameter | Details |
|---|---|
| Switching Capacity | 48 Gbps |
| Forwarding Rate | 35.7 Mpps |
| PoE+ Specifications | IEEE 802.3af/at compliant; Up to 30W per port; 370W total power budget |
| Power Supply | 100-240V AC, 50/60Hz |
| Operating Temperature | 0°C to 45°C (32°F to 113°F) |
| Dimensions & Mounting | 440mm x 160mm x 44mm (W x D x H); 1U rack-mountable |
Typical Applications
- Enterprise LAN access layer for offices and campuses
- IP surveillance systems with PoE cameras
- Unified communications networks (IP phones, video conferencing)
- Wireless network deployments with PoE-powered access points
- Industrial Ethernet applications in manufacturing facilities
- Healthcare networks supporting medical devices and EMR systems
