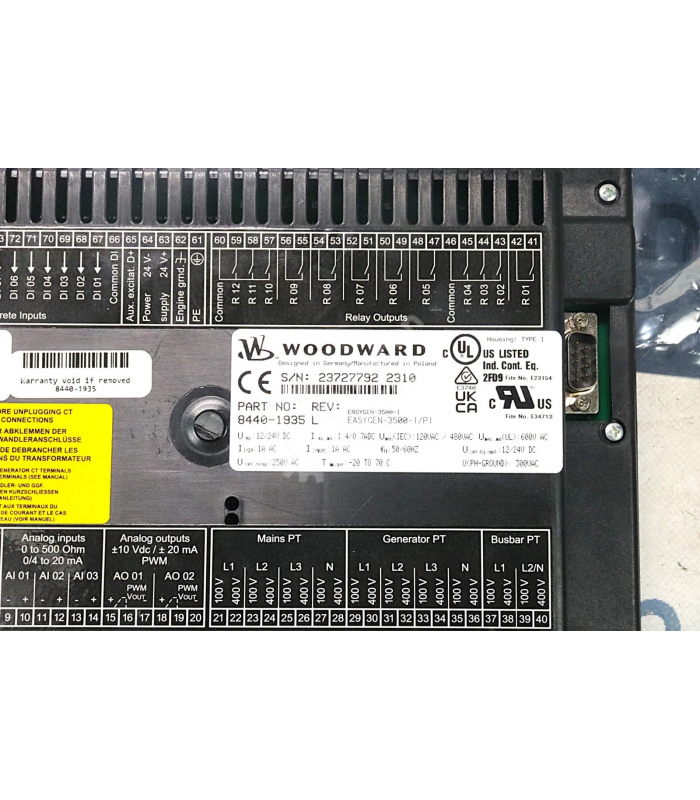

Woodward 8440-1935 multi-functional controller
- Product Code: 8440-1935
- Availability: In Stock
Woodward 8440-1935 Technical Specification
easYgen-3000 Series
Product Overview
The Woodward 8440-1935 is part of the easYgen-3000 series, serving as a multi-functional controller and connector for up to thirty-two units. It features integrated load management capabilities including built-in import/export control and generator group breaker control. This model is alternatively referred to as the easYgen-3500-1-P1 and comes in a sheet metal chassis designed for cabinet installation.
Technical Specifications
| Parameter | Value |
|---|---|
| Accuracy Class | 0.5 |
| Resolution | 16 bit |
| Setting Range | 1-32,000 A |
| Weight | Approx. 1,850 g |
| Parameter | Value |
|---|---|
| Front Panel Dimensions | 282W x 216H x 96D mm |
| Discrete Inputs | Isolated |
| Power Input | 8 to 40 VDC |
| Supported Units | Up to 32 parallel units |
Operational Characteristics
- Power Factor Control: Ratio of real power to apparent power with support for capacitive, resistive, and inductive circuits
- Unity Power Factor: Achieved when current waveforms and voltage are in phase (typically 1.00)
- Monitoring Capabilities: Operating hours, start, and maintenance counters
- Parameter Sets: Three switchable sets for AC system winding, rated voltage, frequency, current, power, and speed
- Application Flexibility: Can be used on pumping units as an indicating instrument (with relays inhibited)
Safety Information
Important Safety Precautions:
- Do not connect any wires to the protective earth terminal on the controller. If necessary, connect through the connector on the bottom of the controller.
- Ensure the current transformer has been short-circuited before disconnecting the device to prevent severe personal injury or death.
Woodward 8440-1935 Technical Specification Document
Data accurate as of publication date
