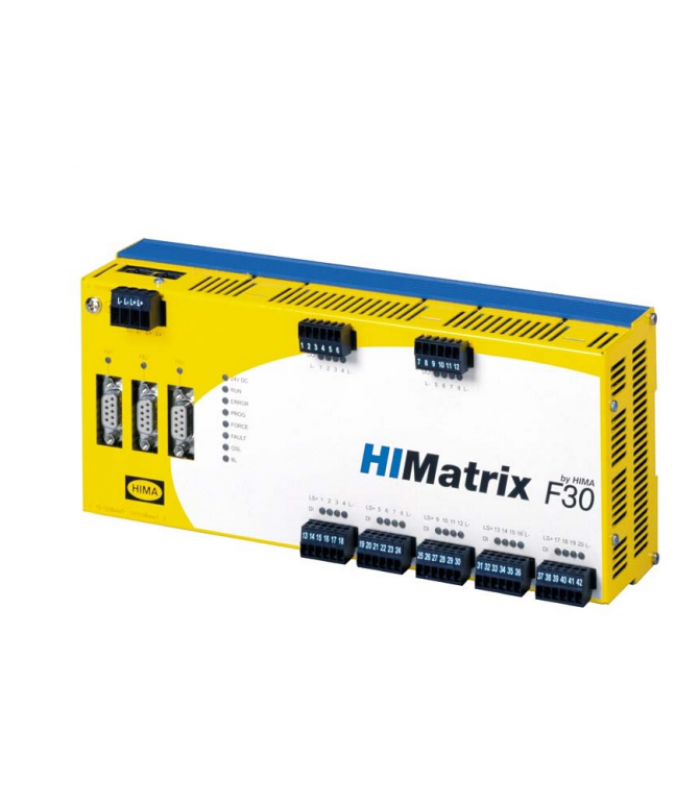

HIMA F30 010 20 OS-REV.V6.46/V11.28 Safety Controller

  • 0 reviews
  • Write a review
    • Product Code: F30 010 20 OS-REV.V6.46/V11.28
    • Availability: In Stock

    HIMA F30 010 20 OS-REV.V6.46/V11.28 Intermediate Document

    Notice

    This intermediate document provides technical specifications and configuration guidelines for the HIMA F30 010 20 safety controller with OS-REV.V6.46/V11.28.

    1. Module Overview

    The HIMA F30 010 20 is a high-integrity safety controller designed for critical applications in the process industry. It features:

    • Triple Modular Redundancy (TMR) architecture for fault tolerance
    • SIL 3 certified according to IEC 61508 and IEC 61511
    • High-performance processor with 200 ms maximum response time
    • Integrated communication interfaces (PROFIBUS DP, Ethernet)
    • Hot-swappable components for maintenance without system shutdown
    • Advanced diagnostic capabilities with fault containment
    • Support for HIMA's HIQuad redundant communication technology

    2. Technical Specifications

    Parameter Specification
    Architecture Triple Modular Redundancy (TMR)
    Safety Integrity Level SIL 3 (IEC 61508), SIL 3 (IEC 61511)
    Processor 32-bit RISC processor, 200 MHz
    System Response Time ≤200 ms (configurable)
    Memory
    • 128 MB program memory
    • 64 MB data memory
    • 8 MB non-volatile memory
    Communication Interfaces
    • 2 x PROFIBUS DP (master/slave)
    • 2 x Ethernet (10/100 Mbps)
    • 2 x RS-485 serial ports
    • Optional fieldbus modules
    I/O Capacity Up to 4096 I/O points
    Power Supply
    • 24 VDC ±20%
    • Redundant power inputs
    • Power consumption: ≤30 W
    Operating Temperature -20°C to +60°C
    Dimensions 210 mm x 160 mm x 260 mm
    Weight Approximately 3.5 kg

    3. Configuration Guidelines

    To configure the HIMA F30 010 20 safety controller:

    1. Install the controller in a suitable rack enclosure with proper ventilation.
    2. Connect the redundant power supplies and verify proper voltage levels.
    3. Connect the communication interfaces to the relevant field devices and networks.
    4. Configure the controller using the HIMax configuration software:
      • Define the system architecture and I/O configuration
      • Set communication parameters for fieldbus interfaces
      • Configure the safety logic using HIMA's safety programming environment
      • Define diagnostic and alarm settings
      • Set up redundant communication paths
    5. Download the configuration to the controller and activate it.
    6. Perform system tests to verify proper operation and fault tolerance.
    7. Implement regular maintenance and firmware update procedures.

    4. Safety Considerations

    The controller incorporates several safety features to ensure reliable operation:

    • Triple Modular Redundancy (TMR) with 2oo3 voting logic
    • Comprehensive self-diagnostics with >99% coverage
    • Fault containment mechanisms to isolate failures
    • Secure boot process and firmware verification
    • Compliance with international safety standards (IEC 61508, IEC 61511, SIL 3)
    • Redundant communication paths for critical signals
    • Configurable fail-safe behavior for all outputs

    HIMA F30 010 20 OS-REV.V6.46/V11.28 Intermediate Document | Last updated: July 1, 2025
