Woodward 505D 8200-2302 Digital Speed/load Controller
- Product Code: 505D 8200-2302
- Availability: In Stock
Woodward 505D 8200-2302

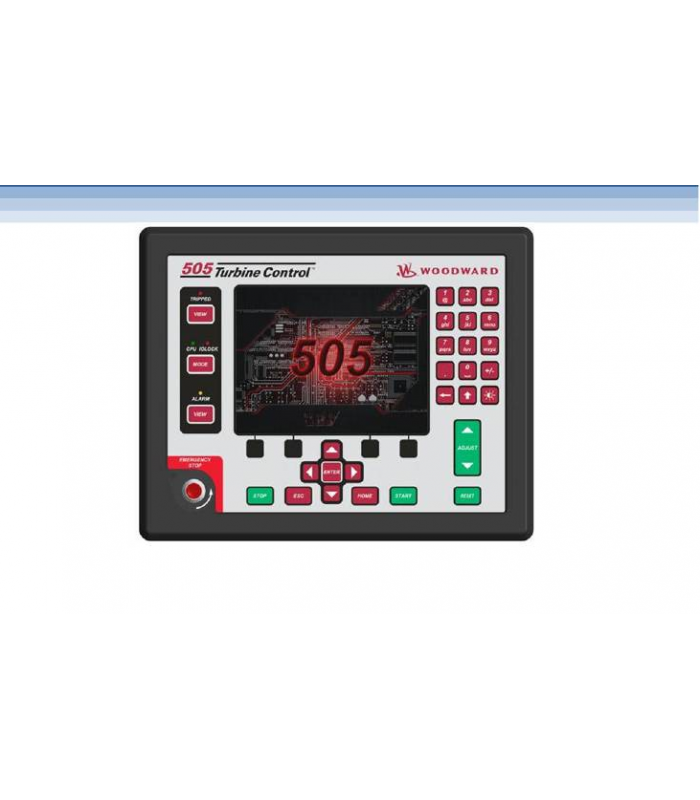

The Woodward 505D 8200-2302 is an advanced digital speed/load controller designed for steam turbines, gas turbines, and other prime movers. It provides precise control and monitoring capabilities to ensure efficient and reliable operation in power generation and industrial applications.
Technical Specifications
- Processor: 32-bit RISC microprocessor
- Display: Backlit LCD with 4x20 character display
- Input Channels: 8 analog, 12 digital
- Output Channels: 6 analog, 8 digital
- Communication: Modbus RTU/TCP, Ethernet
- Frequency Range: 0-10,000 Hz
- Power Supply: 100-240 VAC, 50/60 Hz
- Operating Temp: -20°C to +60°C
- Dimensions: 216 mm x 279 mm x 178 mm
- Weight: 3.6 kg
Functional Features
The 505D controller offers a comprehensive set of features for turbine control, including:
Speed control with droop or isochronous operation
Load sharing and frequency control
Automatic turbine start-up and shutdown sequences
Protection functions with configurable trip settings
Real-time monitoring and data logging capabilities
Applications
Ideal for use in various industrial and power generation settings, the 505D controller is commonly applied in:
- Small to medium-sized steam turbines
- Gas turbines in cogeneration plants
- Industrial drive turbines for pumps and compressors
- Power generation units in remote or harsh environments
- Retrofit projects for older mechanical/hydraulic control systems
