ABB 3BHE022287R0001 UCD240A01 Industrial Control Components
- Product Code: 3BHE022287R0001 UCD240A01
- Availability: In Stock

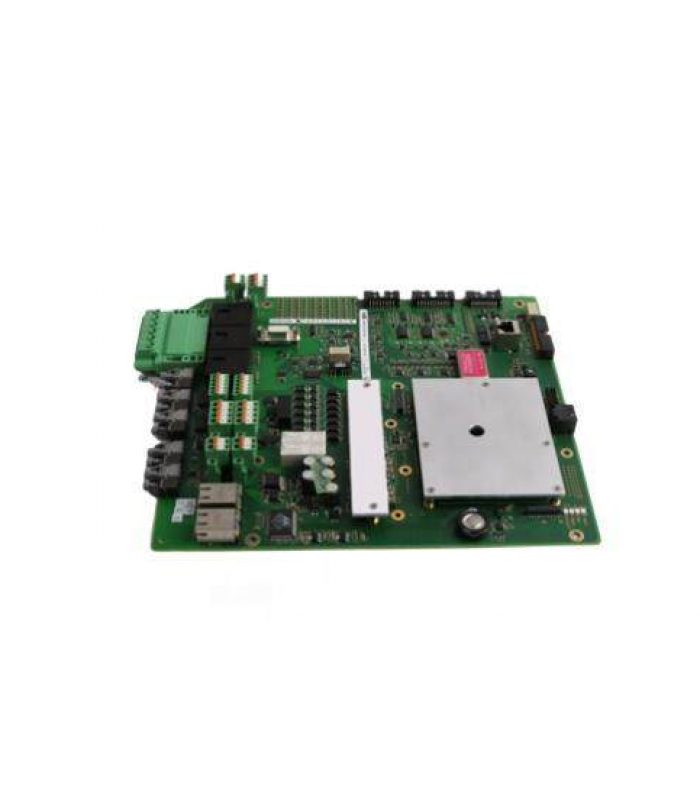

ABB 3BHE022287R0001 UCD240A01
Technical Data Sheet
General Specificatio
| Product Model | 3BHE022287R0001 UCD240A01 |
|---|---|
| Manufacturer | ABB |
| Product Category | Industrial Control Components |
| Product Type | Universal Control Device |
| Compliance Standards | CE, UL, IEC 61850 |
| Weight | Approximately 1.2 kg |
| Dimensions | 180mm x 120mm x 75mm |
Technical Parameters
| Supply Voltage | 24VDC ±20% |
|---|---|
| Power Consumption | Max 15W |
| Input Channels | 8 digital inputs, 4 analog inputs |
| Output Channels | 6 relay outputs, 2 analog outputs |
| Communication Interfaces | 2x Ethernet, 2x RS485, 1x USB |
| Protocol Support | Modbus TCP/RTU, Profibus, IEC 61850 |
| Operating Temperature | -25°C to +60°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH (non-condensing) |
| EMC Compliance | EN 61000-6-2, EN 61000-6-4 |
Product Features
- High-performance universal control device for industrial applications
- 8 digital inputs for status monitoring of external devices
- 4 analog inputs for precise measurement of process variables
- 6 relay outputs for controlling high-power loads
- 2 analog outputs for continuous control signals
- Multiple communication interfaces for seamless integration into industrial networks
- Support for various communication protocols for flexible system configuration
- Robust design for reliable operation in harsh industrial environments
- Configurable logic functions for customized control strategies
- LED indicators for quick status monitoring
- Easy installation and maintenance with plug-in terminals
Typical Applications
- Industrial automation systems
- Building management systems
- Power distribution control
- Process monitoring and control
- Machine control and monitoring
- Renewable energy systems
- HVAC control
- Water and wastewater treatment
- Material handling systems
- Industrial robotics
