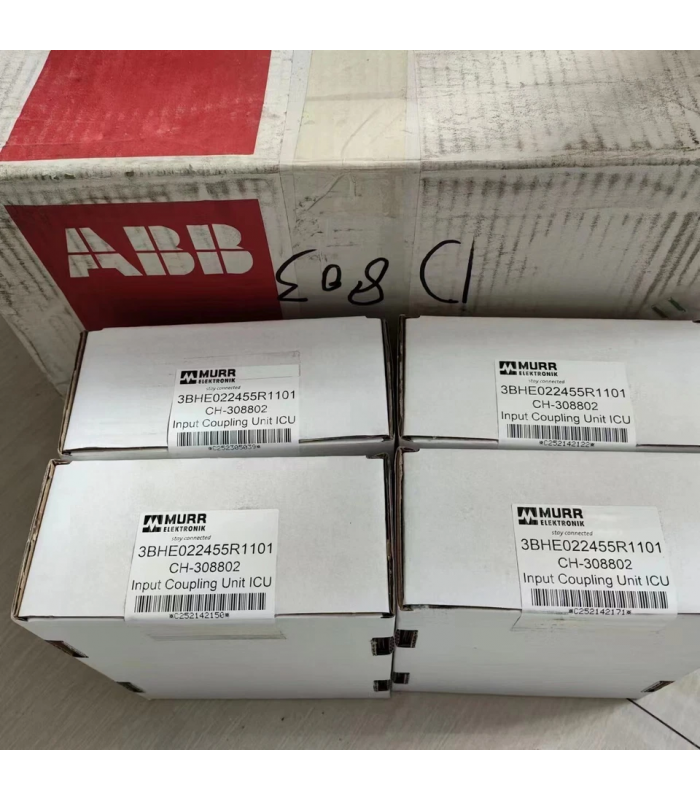

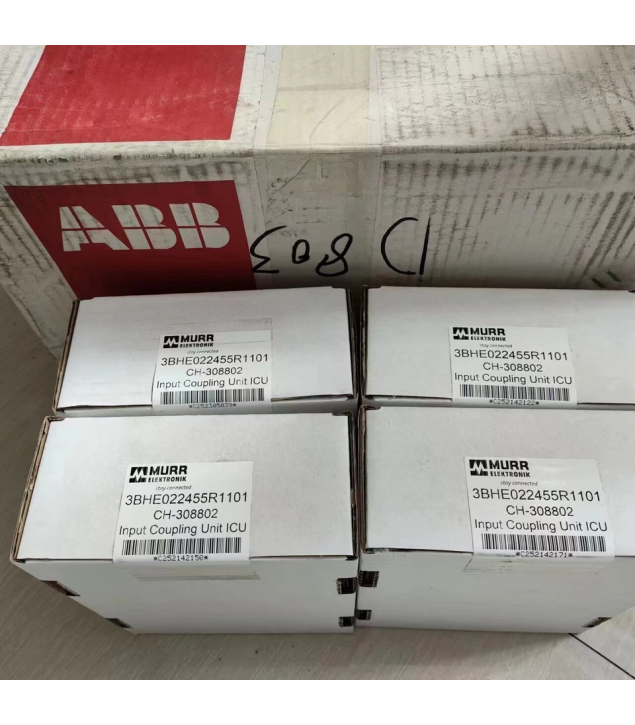

ABB 3BHE022455R1101 KSD211B101 Industrial Control System
- Product Code: 3BHE022455R1101 KSD211B101
- Availability: In Stock
ABB 3BHE022455R1101 KSD211B101
Technical Specification Sheet
General Specifications
| Product Model | 3BHE022455R1101 KSD211B101 |
|---|---|
| Manufacturer | ABB |
| Product Category | Industrial Control System Components |
| Product Type | Output Module |
| Compliance Standards | CE, UL, IEC |
| Weight | Approximately 0.5 kg |
| Dimensions | 120mm x 80mm x 60mm |
Technical Parameters
| Supply Voltage | 24VDC ±10% |
|---|---|
| Power Consumption | Max 5W |
| Output Channels | 8 channels |
| Output Type | Relay Output |
| Contact Rating | 10A/250VAC, 10A/30VDC |
| Contact Material | Silver Alloy |
| Insulation Resistance | Min 100MΩ |
| Dielectric Strength | 2000VAC for 1 minute |
| Operating Temperature | -25°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Humidity | 5% to 95% RH (non-condensing) |
Product Features
- High reliability solid-state output module
- 8-channel relay output configuration
- LED indicators for channel status monitoring
- Short-circuit and overload protection
- Plug-in design for easy installation and maintenance
- Compatible with ABB's industrial control systems
- Wide operating temperature range for industrial environments
- High contact rating for various load types
- Complies with international safety and EMC standards
- Modular design allows for flexible system configuration
Typical Applications
- Industrial automation systems
- Process control systems
- Building automation
- Power distribution control
- Machine tool control
- Material handling equipment
- HVAC control systems
- Lighting control systems
- Packaging machinery
- Robotics and motion control
