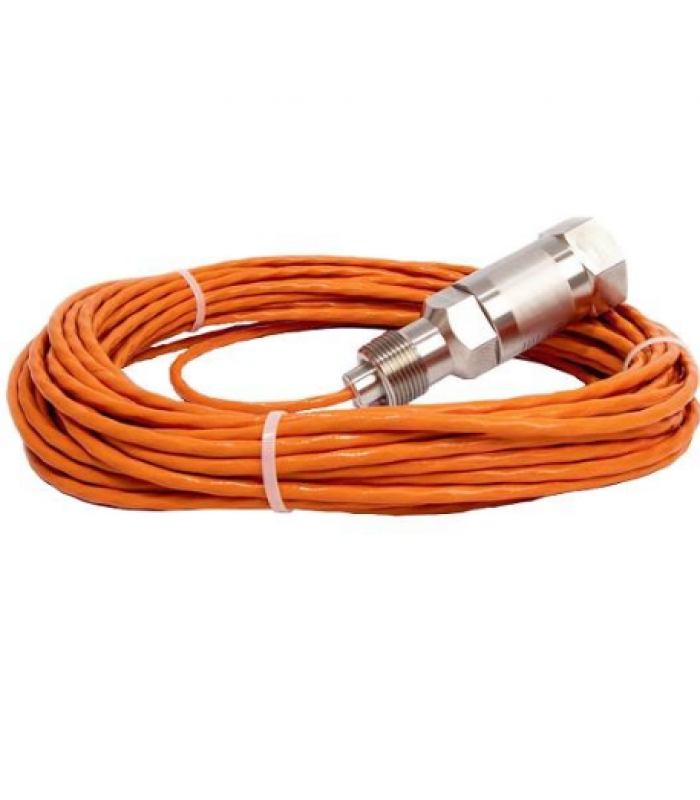

Honeywell LG1093AA24 Ultraviolet Flame Sensor
- Product Code: LG1093AA24
- Availability: In Stock
Honeywell LG1093AA24 Ultraviolet Flame Sensor
Product Overview
The Honeywell LG1093AA24 is a high-performance ultraviolet (UV) flame sensor designed for reliable flame detection in various industrial applications. This advanced sensor is specifically engineered to detect flames across a wide range of environments, making it ideal for use in boilers, burners, industrial furnaces, gas turbines, and jet engines.
Key Features
- High sensitivity - detects even the faintest flames
- Fast response time - detects flames in milliseconds
- Excellent immunity to interference from sunlight, welding light, and other sources
- Rugged and durable design for harsh environmental conditions
- Meets UL, FM, and CSA certification standards
Technical Specifications
| Detection Range: | 250 to 350 nanometers (UV light) |
| Sensitivity: | < 5 mW/cm² |
| Response Time: | < 10 milliseconds |
| Field of View: | 80° |
| Mounting Interface: | 3/4 inch internal NPT |
| Control Panel Connection: | Teflon shielded cable with one inch external conduit thread |
Environmental Specifications
| Operating Temperature: | -40°F to +350°F (-40°C to +177°C) |
| Storage Temperature: | -40°F to +85°C |
| Window Pressure Rating: | 150 psig at 400°F |
| Enclosure Rating: | IP65 |
Cable Length Options
| AAX 4: | 16 ft (4.9 m) |
| AAX 5: | 42 ft (12.8 m) |
| AAX 6: | 61 ft (18.6 m) |
Physical Attributes
| Shipping Weight: | 3 kg (2.35 lbs) |
| Origin: | USA |
Applications
The Honeywell LG1093AA24 UV flame sensor is suitable for a wide range of applications requiring reliable flame detection, including:
- Fire detection systems
- Combustion control systems
- Industrial process control
- Safety monitoring
- Gas turbine flame monitoring systems
- Oil and gas industry
- Power plants and energy facilities
- Chemical and pharmaceutical industries
- Aerospace applications
- Manufacturing environments
Installation Recommendations
For optimal performance, the Honeywell LG1093AA24 UV flame sensor should be installed where it has a clear view of the flame and is shielded from potential sources of interference such as sunlight and welding light. The sensor should be mounted on a solid surface and securely fastened using the 3/4 inch internal NPT mounting interface.
This UV flame sensor provides robust and precise flame detection, ensuring safety and efficiency in various industrial and commercial settings. With its high sensitivity and fast response time, it plays a vital role in flame safety systems by detecting the presence or absence of a flame using ultraviolet radiation.
