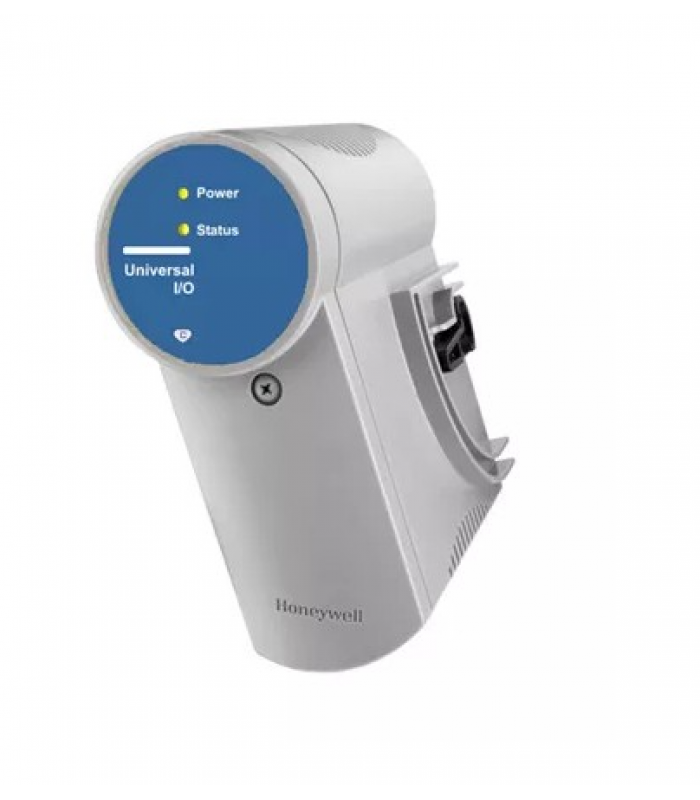

    HONEYWELL CC-PUIO31 Universal Input/Output Module

    Overview

    The Honeywell CC-PUIO31 is a versatile universal input/output (I/O) module designed for industrial applications. It acts as an intermediary device that allows a control system to communicate with various field devices, providing reliable data acquisition and output control functions.

    Key Features

    • 32 configurable channels (each can be set as analog input/output, digital input/output, pulse input, or SOE)
    • 16-bit A/D converter resolution for precise measurements
    • Support for HART 7 protocol for intelligent device communication
    • Built-in electronic short circuit protection
    • Configurable safe-state (FailOpt) behaviors for outputs
    • Extended operating temperature range: -40 to +70°C
    • Open wire detection capability

    Specifications

    Part Number:
    CC-PUIO31 / 51454220-176
    Input Type:
    Current (2, 3, or 4 wire devices)
    Input Channels:
    32 maximum per module
    Input Range:
    0-20 mA or 4-20 mA
    Input Impedance:
    250 Ω
    Input Scan Rate:
    10 ms
    Hardware Accuracy:
    0.1% of full-scale (23.5 ± 2°C)
    Dimensions:
    8.7 cm × 6.4 cm × 9.1 cm
    Weight:
    0.35 kg

    Performance Characteristics

    Normal Mode Rejection:
    18 dB at 50 Hz, 20 dB at 60 Hz
    Input Filter Response:
    Single pole, -3 dB @ 6 Hz
    Crosstalk (DC to 60 Hz):
    60 dB
    Input Voltage Range:
    +33 VDC to -1 VDC
    Short Circuit Current Limit:
    25 mA
    Temperature Drift:
    0.007% of full scale/°C

    Applications

    The CC-PUIO31 module is suitable for various industrial applications:

    • Oil and gas industry
    • Power generation
    • Chemical processing
    • Manufacturing automation
    • Pulp and paper production
    • Turbine control systems
    • Compressor monitoring
    • Pump and fan control
    • Building automation systems

    Product Advantages

    • Flexible Configuration: Each channel can be independently configured for different functions
    • Enhanced Diagnostics: Built-in fault detection and monitoring capabilities
    • Space Efficiency: Compact design allows for high-density installations
    • Easy Maintenance: Innovative design simplifies installation and servicing
    • Redundancy Support: Can be configured for redundant operation without additional equipment
    • Robust Construction: Designed to withstand harsh industrial environments
    • Seamless Integration: Compatible with Honeywell DCS and other control systems

    HONEYWELL CC-PUIO31 Universal Input/Output Module | Document Reference: 51454220-176
