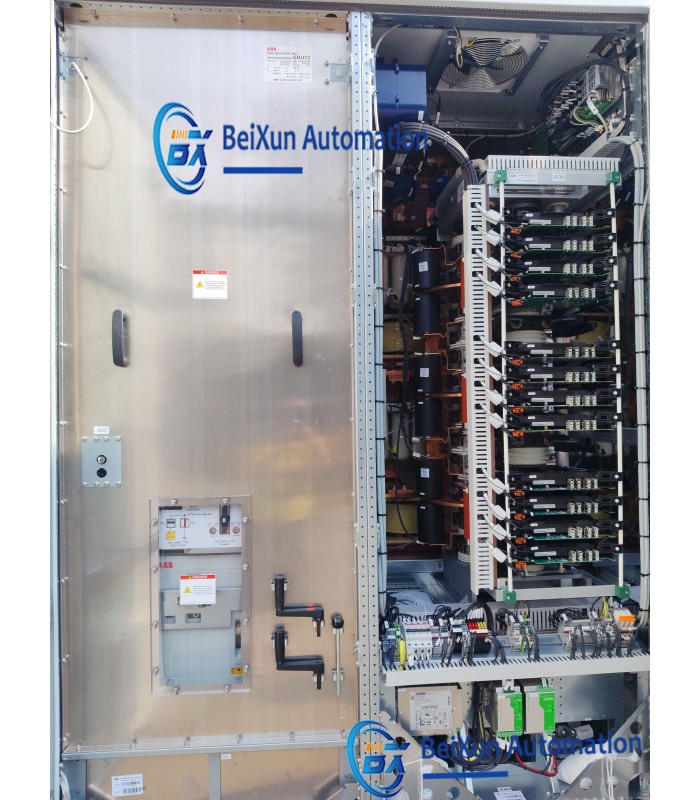

ABB PCS6000 Power Conversion System

  • 0 reviews
  • Write a review
    • Product Code: PCS6000
    • Availability: In Stock

    Document Overview: ABB PCS6000 Power Conversion System

    This intermediate document outlines key technical specifications, operational parameters, and safety guidelines for the ABB PCS6000, a modular grid-connected power converter designed for utility-scale renewable energy applications (e.g., solar PV, wind farms).

    1. Core Technical Specifications

    Rated Power

    Up to 1500 kVA per converter module; scalable via parallel configuration (max. 15 MW per system).

    Input Voltage Range

    690 V AC (three-phase); ±10% tolerance for grid voltage fluctuations.

    Efficiency

    ≥98.5% at rated load; ≥97% at 50% load (including transformer losses).

    Grid Compliance

    Meets IEC 61727, IEEE 1547, and local grid codes (fault ride-through, reactive power control).

    2. Operational Safety Guidelines

    • Lockout-Tagout (LOTO): Always apply LOTO procedures before accessing internal components to prevent electrical shock from residual capacitors.
    • Temperature Limits: Operate within ambient temperature range of -25°C to +50°C; derate power by 2% per °C above +50°C.
    • Grounding: Ensure proper system grounding (≤10 Ω) to comply with safety standards and minimize fault risks.
    • Maintenance Intervals: Conduct visual inspections monthly; perform detailed electrical testing (e.g., insulation resistance) annually.

    3. Document Control Information

    Document ID:

    PCS6000-INT-001

    Revision:

    V2.1

    Issue Date:

    2024-03-15

    Author:

    ABB Power Conversion Engineering Team

    For full technical details, refer to the ABB PCS6000 User Manual (Document ID: PCS6000-UM-001) and Installation Guide (PCS6000-IG-001).
