ABB Processor Module Full Selection Guide: PBAF10A01, PBAE10A01, S‑123H

Industrial processor and phase‑control hardware serve as vital core components within ABB heavy‑duty medium‑voltage drive systems. This comprehensive buying and selection guide covers three popular spare‑part models, namely ABB PBAF10A01 (3BHB028673R0010), ABB PBAE10A01 (3BHB024711R0020L), and ABB S‑123H (3BHB030479R0512). These modules are widely installed inside ACS6000 drive cabinets for metallurgy, mining and power industries. Plant maintenance teams frequently source these parts for equipment overhaul, emergency       replacement and spare‑part inventory management to minimize costly unexpected production outages caused by drive system faults.

1. ABB PBAF10A01 | 3BHB028673R0010

• Model Number: PBAF10A01, 3BHB028673R0010
• Module Category: Standard Processor Control Board
• Main Functions: Real‑time logic calculation, internal backplane bus communication, drive signal processing, on‑board fault diagnosis
• Control Power Input: 24 VDC
• Operating Temperature: 0°C ~ +55°C
• Humidity Range: 5%‑95% non‑condensing
• Application Scope: Medium‑voltage drive control cabinet, power conversion system, retrofitting of legacy ABB ACS6000 drives

PBAF10A01 functions as the main CPU board for the ACS6000 drive unit. It collects feedback signals returned from each power phase module, executes drive control algorithms, triggers system protective shutdown, and transmits operational status data to higher‑level PLC and SCADA systems. For many older medium‑voltage drive installations, this board remains one of the most frequently ordered replacement spare parts.

2. ABB PBAE10A01 | 3BHB024711R0020L

• Model Number: PBAE10A01, 3BHB024711R0020L
• Module Category: Enhanced Processor Interface Board
• Main Functions: High‑speed inter‑module synchronization, analog and digital signal conditioning, coordination of multi‑phase power units
• Mounting Condition: Internal cabinet installation for variable frequency drive cubicles
• Communication: High‑speed internal backplane bus
• Operating Temperature: 0°C ~ +55°C
• Humidity Range: 5%‑95% non‑condensing
• Application Scope: Heavy‑load medium‑voltage drives for mining hoists, metallurgical rolling mills, large fans and pump groups

PBAE10A01 is the upgraded enhanced variant compared to the standard PBAF10A01. Its optimized synchronization performance guarantees precise coordination between the main controller and high‑power phase modules under heavy shock‑loading conditions. System integrators often select this board during drive‑system upgrade projects to strengthen anti‑interference performance and dynamic response of the whole drive set.

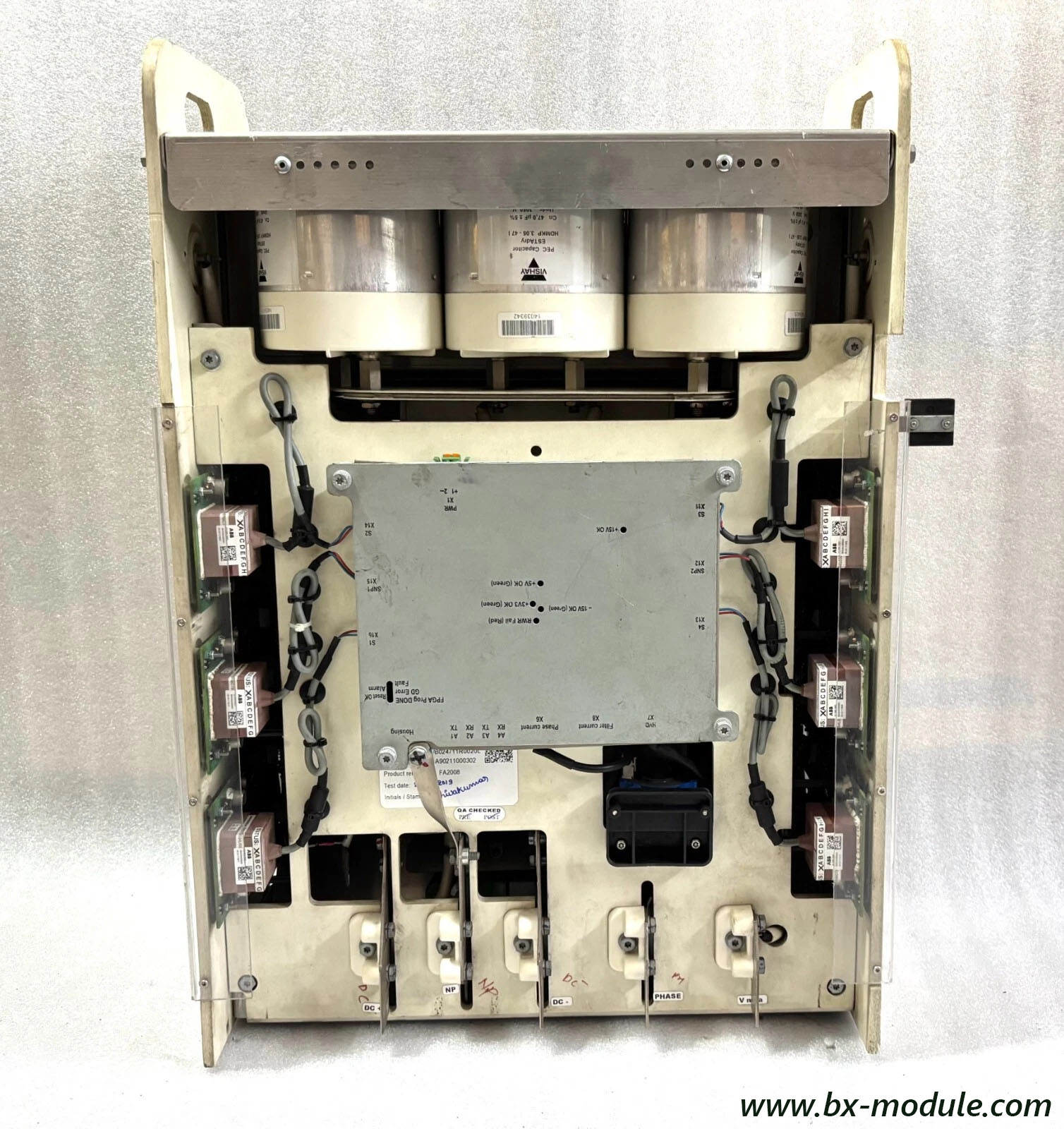

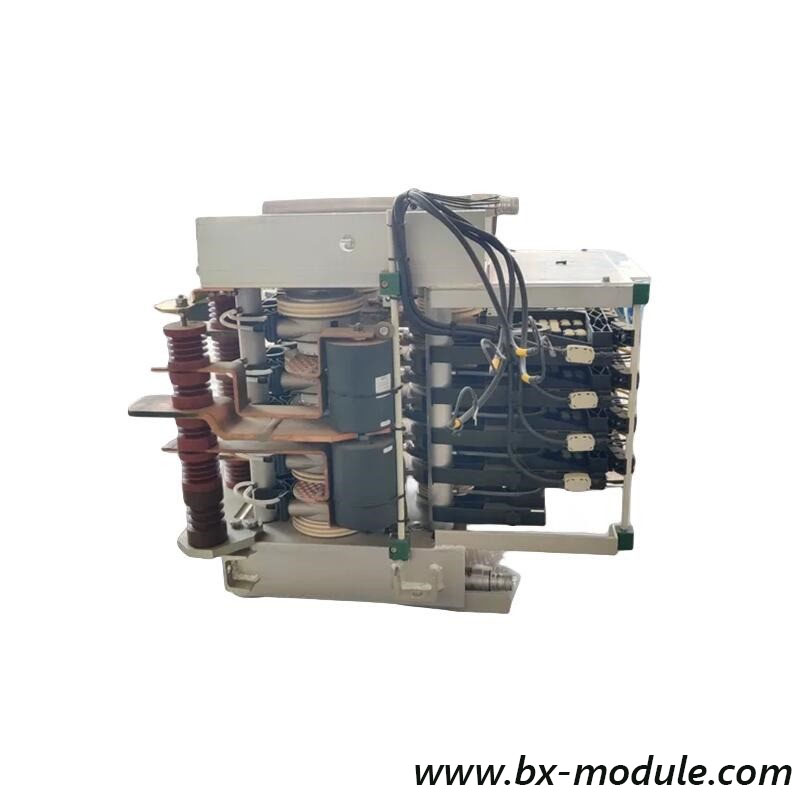

3. ABB S‑123H | 3BHB030479R0512

• Model Number: S‑123H, 3BHB030479R0512
• Module Category: Water‑Cooled Medium‑Voltage Phase Power Module
• Main Functions: IGBT high‑power switching control, main energy conversion, regenerative feedback for motor braking
• Cooling Method: Closed‑loop deionized water cooling
• Rated Capacity: Suitable for 12MVA ACS6000 medium‑voltage frequency converter
• Operating Ambient Temperature: ‑10°C ~ +50°C
• Protection Grade: IP20 (for cabinet inner installation)
• Application Scope: Steel mill main drive, large‑capacity compressor units, heavy industrial medium‑speed motor control

Unlike the above two control processor circuit boards, S‑123H is a complete high‑power water‑cooled phase power module. It receives command signals sent by PBAF10A01 or PBAE10A01 control boards and performs high‑power energy conversion to drive large industrial motors. Due to its water‑cooled design, this power module is a critical spare component for heavy‑duty ACS6000 drives running inside metallurgy and mining facilities.

Selection Tips & Compatibility Reminders

• Before replacing PBAF10A01 or PBAE10A01 control boards, you must confirm firmware versions to achieve good compatibility with the existing ACS6000 drive cabinet.
• For S‑123H water‑cooled power module, verify mechanical installation dimensions and water‑cooling pipeline layout before ordering spare parts.
• All three models belong to older generation industrial spare parts; original new stock is limited worldwide, refurbished fully‑tested modules are widely adopted for plant maintenance jobs.

Spare Parts Supply & Technical After‑Sales

We supply both brand‑new and fully refurbished ABB automation spare parts covering PBAF10A01, PBAE10A01 and S‑123H. Every module undergoes strict functional testing, aging test and system compatibility verification before shipment. Our technical support team provides version‑matching confirmation, field installation guidance and complete drive system debugging service to help industrial customers restore the medium‑voltage drive system quickly after hardware failure.

Frequently Asked Questions

• Q: What is the core difference between PBAF10A01 and PBAE10A01?
  A: PBAF10A01 is the standard main processor board; PBAE10A01 is the enhanced version optimized for high‑speed synchronization under heavy‑load working conditions.
• Q: Can S‑123H phase module cooperate with both PBAF10A01 and PBAE10A01?
  A: It depends on the local ACS6000 system firmware version; compatibility verification is strongly recommended before replacement work.
• Q: Are refurbished spare modules tested before delivery?
  A: Yes, all refurbished units pass comprehensive bench testing to satisfy continuous industrial operating requirements.
• Q: Which industrial fields commonly adopt these three ABB modules?
  A: Mainly metallurgy, mining, large pumping stations and heavy‑duty fan facilities with ABB ACS6000 medium‑voltage drive systems.
