Woodward 505/2301E Turbine Governor Full Module Selection Guide
Woodward 505/2301E Turbine Governor Full Module Selection Guide
Main Controller Series:
505 Digital Governor & 2301E Load Sharing Governor
Application Industry:
Steam / Gas / Hydro Turbine Control
1. Core Product Classification

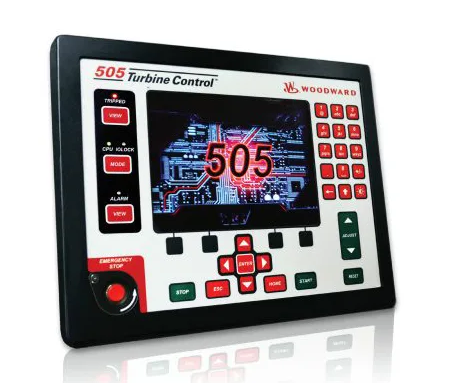

- Woodward 505 Standard Turbine Governor Unit
- Woodward 505XT Enhanced Digital Governor Module

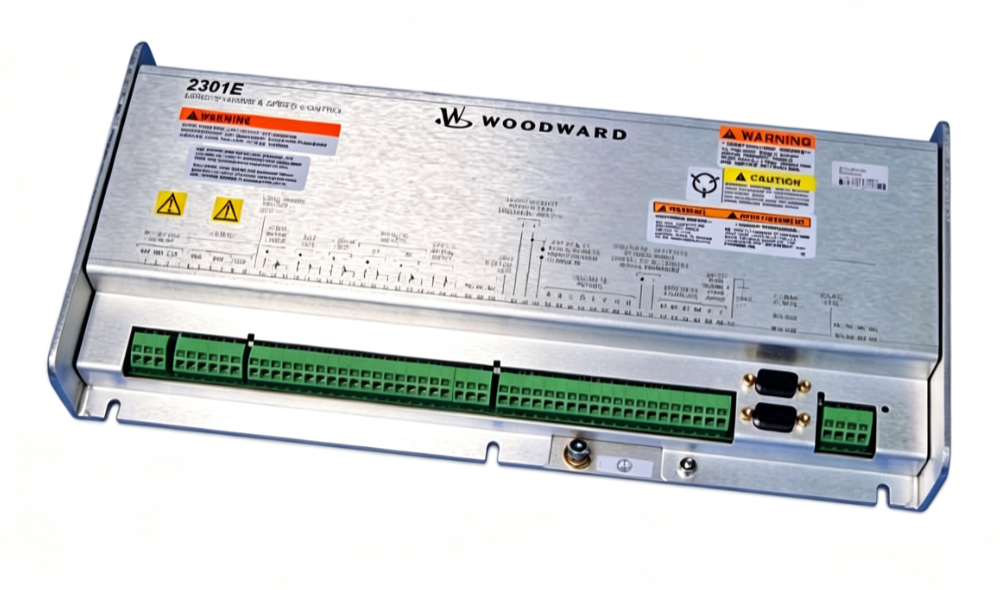

- Woodward 2301E Load Sharing & Speed Control Controller
- Expansion I/O Analog & Digital Extension Cards
- Signal Transducer, Actuator Driver & Power Supply Accessories
2. Key Functional Performance
- Precise speed regulation, load control and over-speed protection logic
- Dual redundant signal input for valve actuator position feedback
- Built-in PID algorithm for stable turbine running adjustment
- Modbus RTU/TCP communication for DCS system interconnection
- Complete fault alarm, event recording and historical data storage
- Support single unit control and multi-unit parallel load sharing
3. Typical Application Scenarios
- Small & medium steam turbine generator sets
- Industrial gas turbine and microturbine units
- Hydropower turbine speed and load control cabinet
- Biomass power plant turbine control system
- Refinery, chemical plant industrial drive turbine
4. Purchase & After-Sales Service Specifications
Original Woodward complete governor modules and spare parts supply
Full function inspection and calibration test before delivery
Global door-to-door logistics and fast delivery support
12-month full coverage quality warranty
Professional technical support for parameter setting, commissioning and fault repair
Remarks: This selection guide covers all mainstream hardware combinations of Woodward 505 and 2301E turbine governors, helping users quickly match controllers, extension boards and supporting accessories according to turbine unit parameters.
