Honeywell Prosoft DCS Communication Spare Parts List
HONEYWELL DCS & Prosoft Communication All Spare Parts Master List
Full Inventory of Honeywell DCS Native Communication Cards & ProSoft Gateway/Interface Spare Components
1. Honeywell Native DCS Communication Spare Parts (Experion PKS / TDC3000 / LCN)
| Part Number | Component Name | Communication Protocol & Interface | Applicable DCS System |
|---|---|---|---|

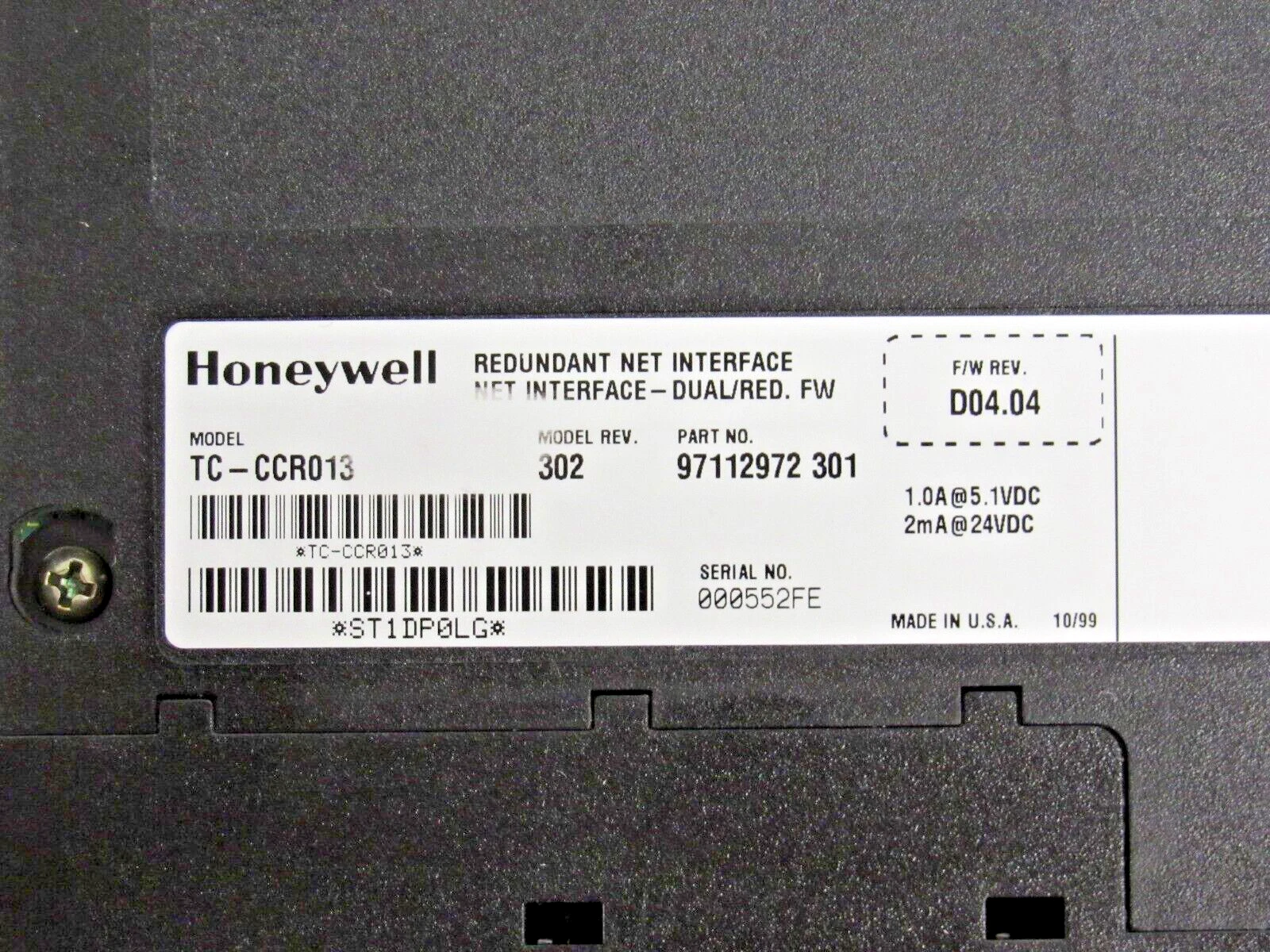

| TC-CCR013 / 51199942-300 | Redundant ControlNet Interface Module | ControlNet, Dual Redundant Channel | Experion PKS C300 Controller |
| |||

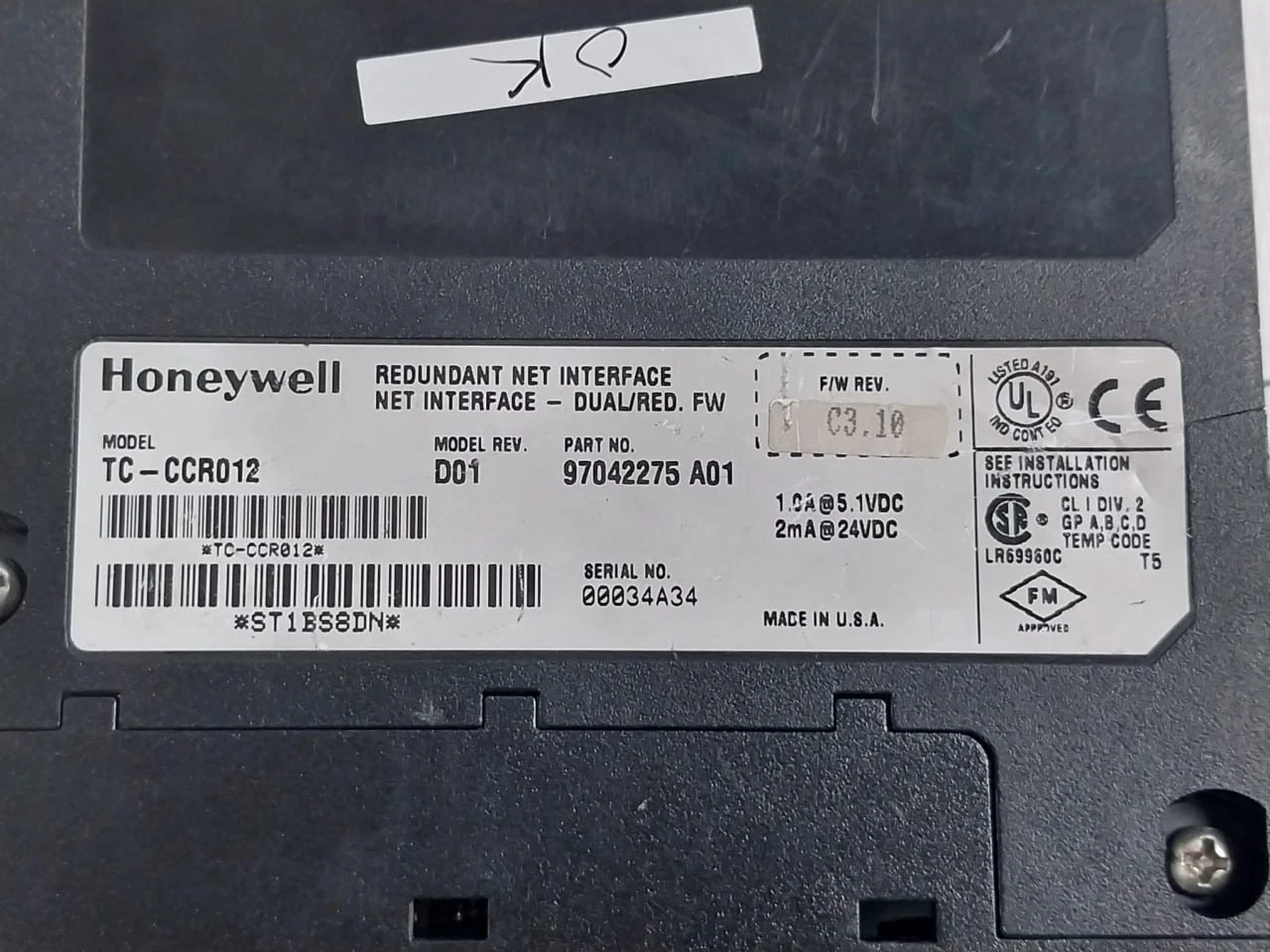

| TC-CCR012 | Single Channel ControlNet Network Interface Module | ControlNet, Single Port | Experion Series A I/O Rack |
| |||
| FC-DCOM-232/485 CC V2.1 | RS232/RS485 Serial Communication FTA Board | Modbus RTU, RS232 / RS485 | Experion PKS, Safety Manager |
| 30750338-003 / 30750338-004 | LCN High Speed Communication Board | LCN Bus, TDC3000 Native Protocol | TDC3000 / Experion LCN |

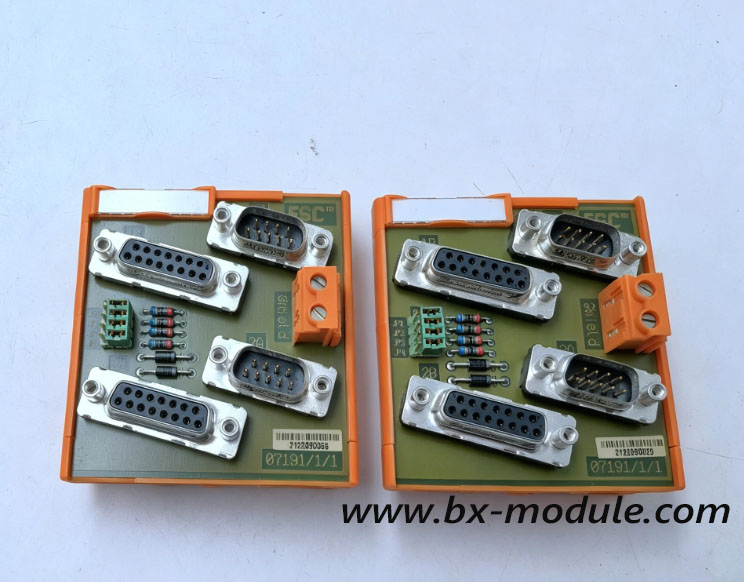

| 07191/1/1 | RS485 Communication Daughter Board | RS485 Multi-drop Serial Bus | Legacy TDC2000 / TDC3000 |
| |||

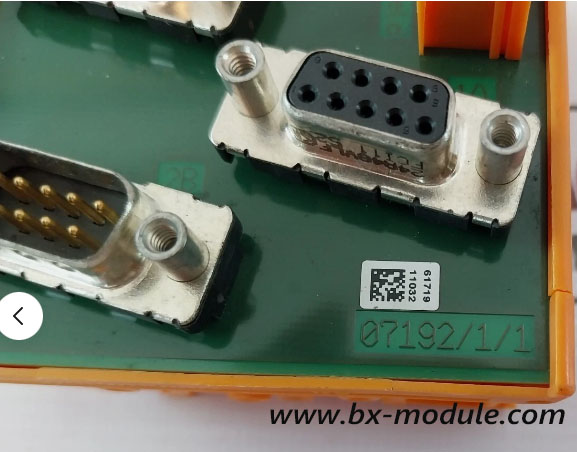

| 07192/1/1 | RS232 Serial Communication Board | RS232 Point-to-Point Serial | Legacy Honeywell DCS Workstation |
| |||
| TC-RPFM01 | ControlNet Fiber Optic Media Module | ControlNet Fiber Long Distance Transmission | Experion PKS Distributed I/O |
| TC-PMFO01 | Hazardous Area ControlNet Fiber Module | Intrinsically Safe Fiber ControlNet | Oil & Gas Zone 0/1 DCS Cabinets |
| 10001/R/1 | Vertical Bus Driver (VBD) Communication Card | Local I/O Vertical Backplane Bus | TDC3000 APM/HPM Process Manager |
|
2. ProSoft Communication Gateway & Interface Spare Parts for Honeywell DCS Interconnection
| Part Number | Component Name | Supported Protocols | Honeywell DCS Integration Purpose |
|---|---|---|---|
| PMF1216D61 | ProSoft Honeywell DCS Remote Rack Communication Module | Modbus TCP/IP, Ethernet/IP, DeviceNet | Remote I/O Rack Data Bridge for Experion PKS |
| PMF1327205 | ProSoft Universal DCS Communication Gateway | Modbus TCP, FTE, HART IP | Cross-system data exchange between Honeywell & third-party PLC |
| 3750-DEM | ProSoft Honeywell DE Protocol Communication Module | Honeywell DE Digital Fieldbus | Connect Honeywell DE Smart Transmitters to Experion Controller |

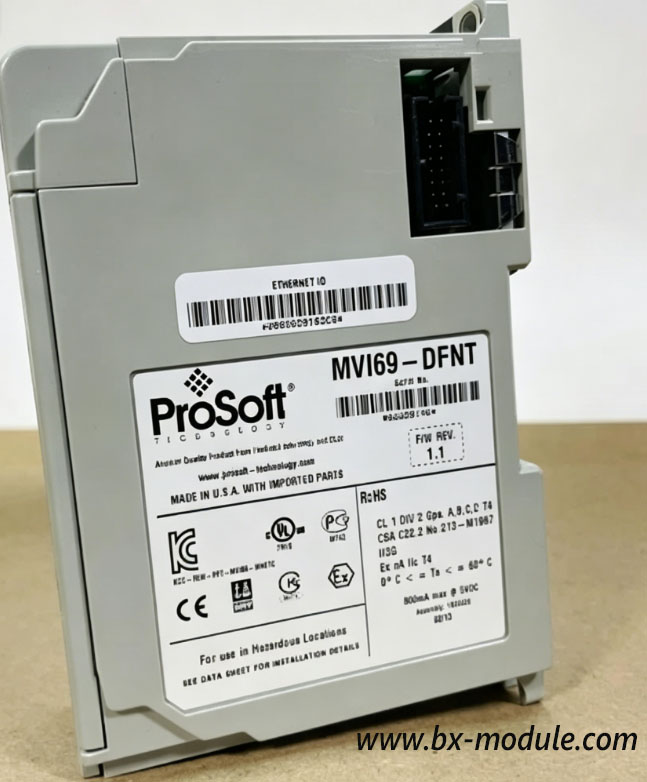

| MVI69-DFNT | ProSoft Modbus TCP Gateway Module | Modbus TCP/IP, Modbus RTU | Modbus device integration for TDC3000 & Experion LCN |
| |||

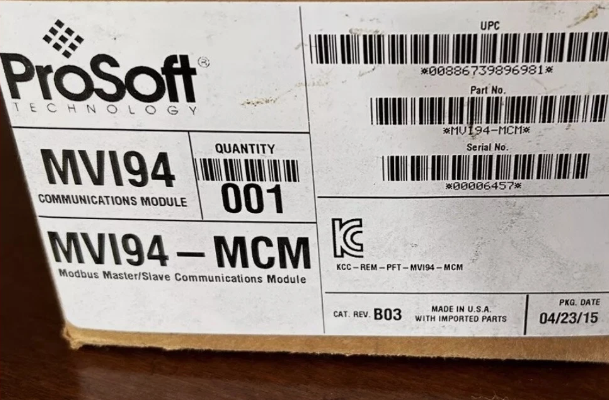

| MVI94-MCM | Multi-drop Modbus Master Communication Module | Modbus RTU Master/Slave | Legacy Honeywell DCS serial Modbus expansion |
| |||
| 3100-INUSA | Industrial Serial Communication Interface Module | RS232, RS422, RS485, ASCII | Third-party analyzer serial data upload to Honeywell DCS HMI |

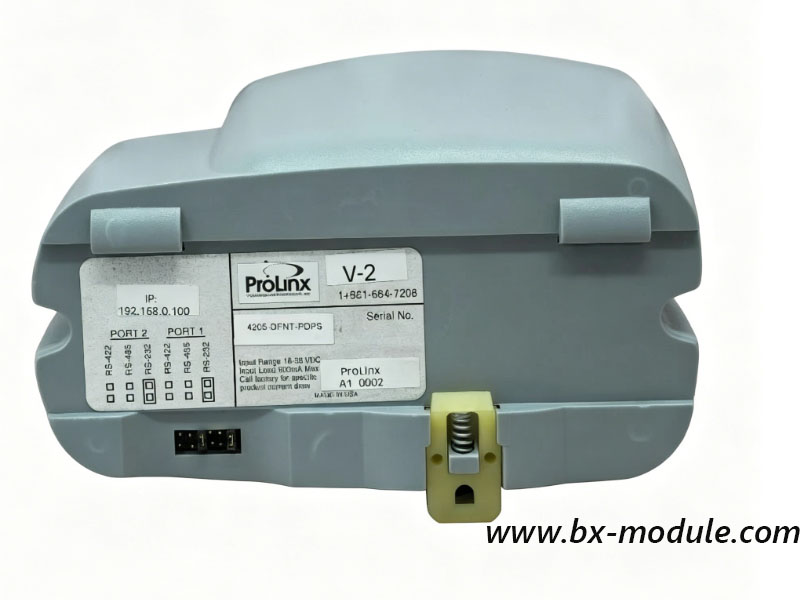

| 4205-MNET-PDPS | Modbus TCP to Profibus DP Gateway | Modbus TCP, Profibus DP | Bridge Honeywell DCS and Profibus slave field devices |
| |||
| 3100-MDA16 | 16-channel Modbus Master Communication Module | Multi-channel Modbus RTU Master | Mass Modbus sensor access for Honeywell Experion PKS |
3. Auxiliary Communication Spare Accessories (Cables, Terminal Bases, Power & Media Parts)
- 30732368-001: Honeywell DCS Keyboard Interface Communication Cable
- 30732393-001: Hiway Bus Driver/Receiver Communication PWA Board
- TC-PTBC11: Screw Clamp Terminal Base for Communication I/O Modules
- TC-RPA001: ControlNet Fiber Repeater Adapter Media Spare Part
- ProSoft DB25 RS485 Shielded Communication Cable Assembly
- ProSoft Compact Flash Configuration Storage Card for Gateway Modules
- 07187/2/2: 48V Safety Relay for Communication Rack Isolation

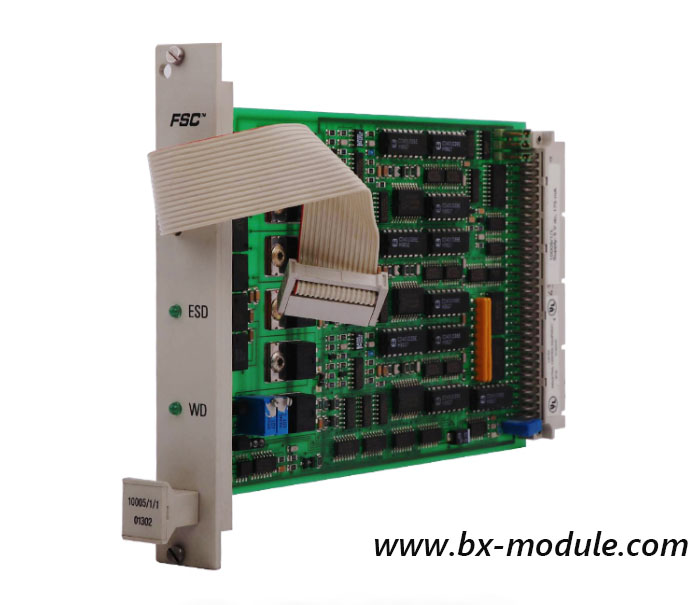

- 10005/1/1CC: Watchdog Monitoring Module for DCS Communication Bus Fault Diagnosis
Document Description: Complete spare parts catalog covering all core communication hardware of Honeywell Experion PKS / TDC3000 / LCN DCS systems and matched ProSoft cross-protocol gateway modules, including interface cards, media converters, serial boards, fiber modules and auxiliary wiring accessories. All parts support original factory testing, 12-month standard warranty and global industrial automation DCS maintenance inventory deployment.
