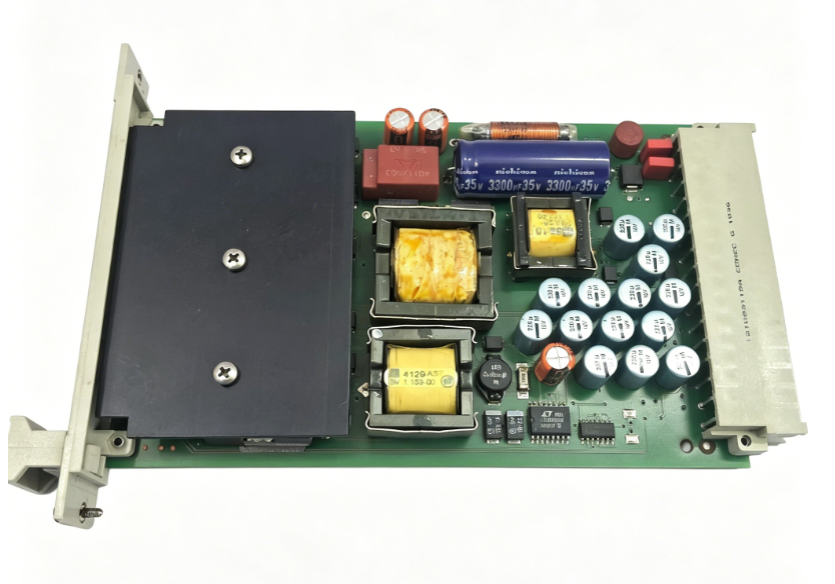

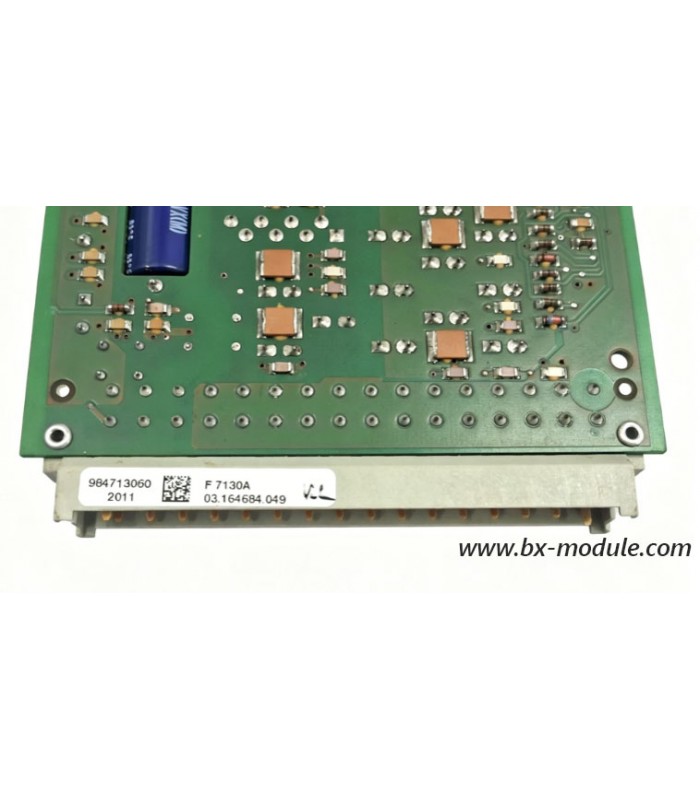

HIMA F7130A Filter Board
- Product Code: F7130A
- Availability: In Stock
Purchase Attributes：Original, Brand New
Service Attributes
▷ Stock & Logistics：Fast Delivery
▷ After-sales Guarantee：12 Months Warranty
▷ Online Customer Service：24 Hours Online Support
▷ Product Advantages：Competitive Price, Long Service Life
Application Attributes：HIMA F7130A Filter Board
HIMA F7130A System Power Distribution & Filter Board
1. Basic Product Information
| Part Model | F7130A |
| Product Category | SIS Rack Power Distribution & Filter Module |
| Applicable System | HIMax, HIQuad H41q / H51q Safety Instrument System |
| Safety Certification | TÜV SIL3, IEC 61508, IEC 61511 |
| Matching Power Supply | F7126 24VDC Redundant Rack Power Module |
2. Core Functions & Features
- Stabilize backplane bus voltage for all logic and I/O modules inside SIS rack
- Built-in multi-stage EMI filter to suppress industrial power noise and surge interference
- Distribute 24VDC power to each slot of system rack with overcurrent branch protection
- Real-time power circuit self-diagnosis, report abnormal voltage/overload via system bus
- Support redundant power input switching to ensure uninterrupted safety logic operation
- Short-circuit isolation protection to avoid single module fault causing whole rack power failure
3. Electrical Specifications
| Rated Input Voltage | DC 24V (18V ~ 30V wide range) |
| Output Bus Voltage | Stabilized DC 24V |
| Operating Temperature | 0°C ~ +60°C |
| Storage Temperature | -40°C ~ +85°C |
4. Application & Maintenance Instructions
F7130A is a mandatory matching spare part for HIMA SIS cabinet power system. It shall be replaced once abnormal bus voltage, frequent module communication dropout or power filter failure occurs during daily ESD system maintenance.
For project spare part inventory allocation, it is recommended to configure 1 set of F7130A for every 2 SIS control racks to support emergency online replacement without system shutdown.
