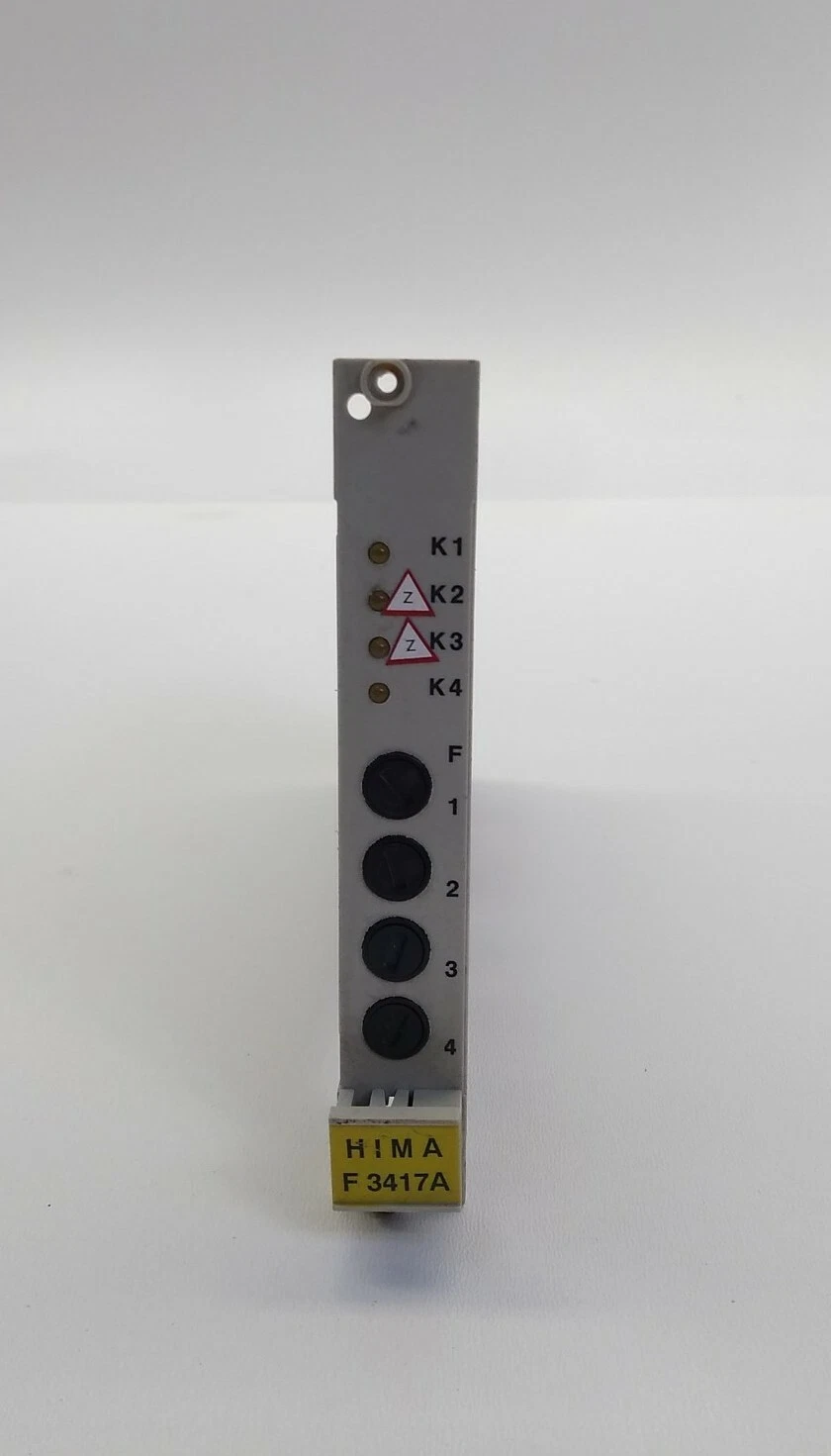

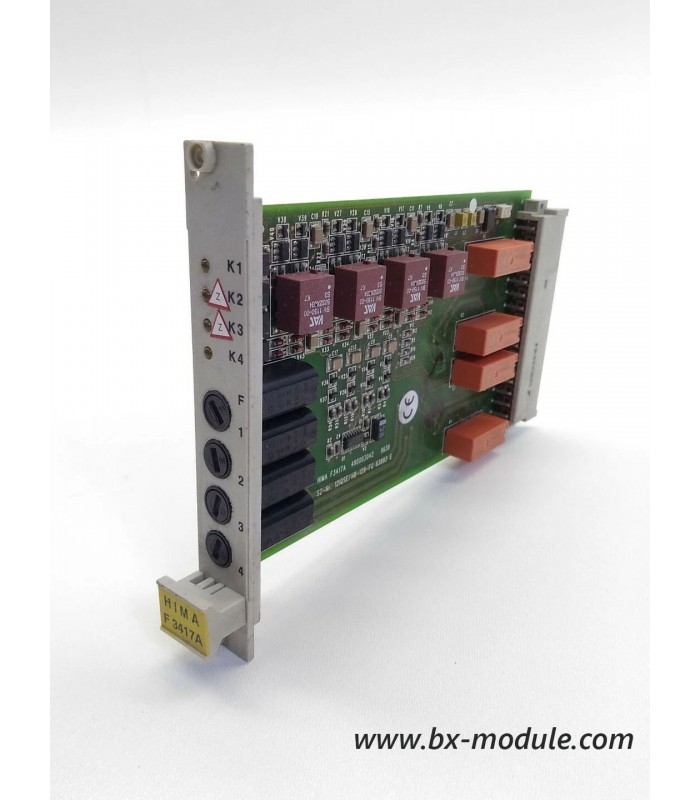

HIMA F3417A 4-Channel SIL3 Fail-Safe Relay Amplifier Module

1. Basic Product Specifications

2. Core Functional Features

• Amplify weak digital output signals to drive high-power ESD solenoid valves and field safety actuators
• Adopt force-guided safety relay contacts to meet mandatory fail-safe standards for process safety
• Independent self-diagnosis for each channel, detecting coil short-circuit, contact aging and wire break faults
• Complete galvanic isolation between rack internal logic circuit and field heavy-load control loop
• Transmit all fault diagnosis signals to safety CPU through internal H-Bus backplane for real-time alarm recording
• Built-in channel-level short-circuit, overload and surge protection to avoid cascading module damage

3. Electrical & Environmental Parameters

4. Application & Spare Parts Management Suggestions

F3417A is a key expansion module for SIS heavy-current output, widely used in petrochemical, oil & gas ESD shutdown circuits, fire and gas valve control, emergency trip actuator drive loops.

If the system continuously reports relay contact faults, delayed valve response or channel overload alarms, the F3417A module needs emergency replacement. Standard rack slot design supports hot-swap without shutting down the whole safety system.
