GE IS215UCVEH2AF UCVE VME Real-Time Controller Mark VI Turbine & EX2100 Excitation System
- Product Code: IS215UCVEH2AF
- Availability: In Stock
GE IS215UCVEH2AF UCVE VME Real-Time Controller Mark VI Turbine & EX2100 Excitation System
Manufacturer: GE Vernova Gas Power Mark VI IS215 Series
Model: IS215UCVEH2AF (UCVE Main CPU Board Rev AF)
Matching Hardware: IS200 series I/O boards, IS200TREG trip board, DS200SDCC EX2000 excitation main board
Compatible Platform: Mark VI VME turbine rack only (NOT Mark VIe / Mark V)
Type: Single-slot VME hot-swappable real-time single board computer (SBC), QNX OS control CPU
Core Function: Turbine closed-loop regulation, sequence & interlock logic, ISBus I/O scheduler, multi-protocol communication, fault event recording, online maintenance
1. Product Overview
IS215UCVEH2AF (UCVE) is the core real-time CPU board for GE Mark VI gas/steam turbine & EX2100 excitation control systems. It runs QNX Neutrino hard real-time OS to execute all critical turbine control algorithms, sequence logic and safety interlocks.
All field analog/discrete signals collected by IS200 series I/O termination boards are transmitted to UCVE via proprietary ISBus VME backplane for unified calculation, then output control commands back to field actuators. Dual redundant Ethernet and dual serial ports provide multi-protocol communication with HMI, plant SCADA and auxiliary equipment.
Conformal coated PCB and wide-temperature design adapt to harsh power plant cabinet environments; hot-swap enables maintenance without unit shutdown. GE stopped original new production, only refurbished and surplus spare parts available aftermarket.
2. Full Technical Specifications
• Processor: Intel Celeron 300 MHz
• Memory: 32MB DRAM, 128KB L2 Cache, 8KB battery-backed SRAM (event storage)
• Program Storage: 16MB removable Compact Flash card
• Operating System: QNX Neutrino real-time multitasking OS
• Network Interfaces: Dual 10/100Mbps Ethernet (EGD, Modbus TCP)
• Serial Ports: 2×RS232 COM1/COM2 (Modbus RTU, HHM debug)
• Backplane Bus: VME + ISBus high-speed serial I/O bus
• Hot Swap Support: Yes, online replacement without rack power cut
• Diagnostic LEDs: Power, Run, Fault, Comm, Network status indicators
• Rack Supply: 5VDC / 24VDC from VME backplane
• Operating Temperature: -30℃ ~ +65℃ ventilated turbine/excitation cabinet
• Humidity Range: 5% ~ 95% RH non-condensing
• Mechanical: Single-width standard VME slot, metal heat sink, approx 1.0kg weight
• Certifications: CE, UL power generation safety certification

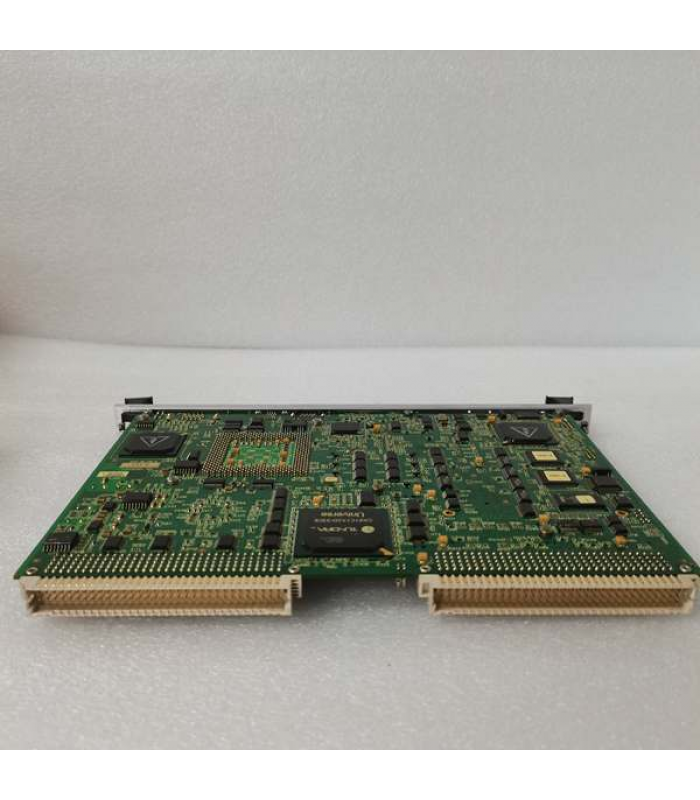

3. On-board Hardware Layout
1. Front panel: Multi-status LED array, dual Ethernet RJ45, 2×RS232 serial DB9 ports, CF card slot, fixing latches
2. Metal large heat sink for Celeron main processor
3. Memory, battery-backed SRAM, flash storage circuit
4. Ethernet & serial communication transceiver chips
5. ISBus/VME backplane gold finger edge connector at rear edge
6. Conformal coated PCB with silkscreen part number IS215UCVEH2AF
4. System Hardware Matching Chain
• IS215UCVEH2AF (UCVE): Mark VI core real-time control CPU board
• IS200 series I/O Boards: IS200TDBTH6ABC mixed DI/DO, IS200SDIIH1ADB DI only, IS200TREGH1BEC trip voting relay board
• DS200SDCCG5AHD: EX2000 generator excitation main control board
• Field devices: Speed probes, PT/CT transformers, valve servos, limit switches, trip solenoids, RTD temperature sensors
• Full signal chain: Field sensors/actuators → IS200 I/O terminal board isolation & conversion → ISBus VME backplane → IS215UCVEH2AF real-time algorithm calculation → Output commands to field equipment + HMI/SCADA data upload
• Platform Separation: Cannot be installed in Mark V DS200, Mark VIe UCSE, Honeywell System57, Emerson Ovation, GE Genius IC660 racks; exclusive Mark VI VME controller
5. Typical Industrial Application Scenarios
• Combined-cycle gas turbine Mark VI rack: Main control CPU for fuel, speed, temperature, load closed-loop regulation & unit sequence control
• Coal-fired steam turbine EX2100 excitation cabinet coordination: Exchange generator voltage/current signals to implement AVR excitation regulation
• Industrial cogeneration gas turbine unit: Auxiliary BOP equipment interlock, local pushbutton & valve position signal centralized processing
• Power plant centralized monitoring: Dual Ethernet upload real-time operating data, fault trip records to plant SIS/SCADA/HMI system
GE Vernova Gas Power © IS215UCVEH2AF UCVE Real-Time VME Controller Mark VI Speedtronic Turbine & EX2100 Excitation Control System
