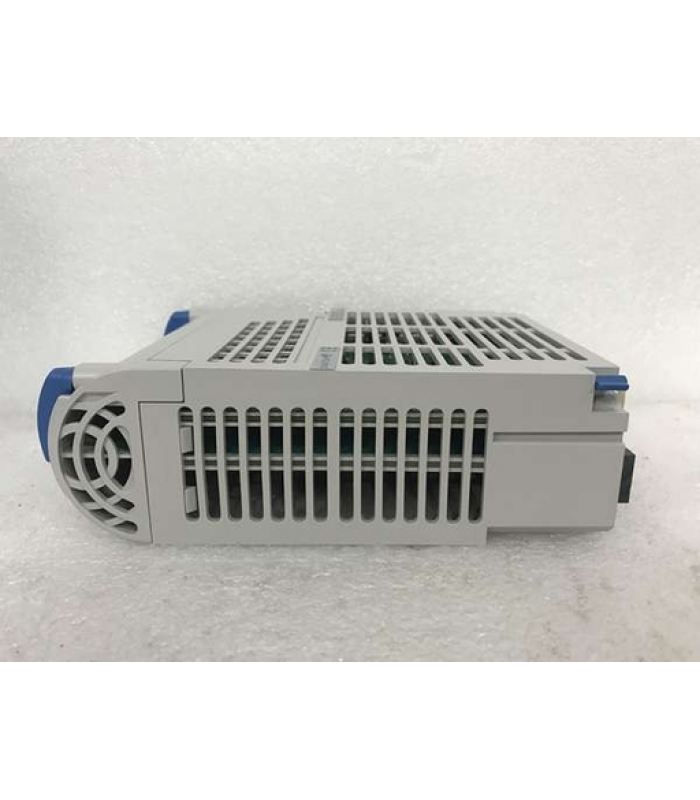

EMERSON 1C31234G01 16‑Channel Compact Digital Input Module

  • 0 reviews
  • Write a review
    • Product Code: 1C31234G01
    • Availability: In Stock
    EMERSON 1C31234G01
    Manufacturer: EMERSON
    Part No: 1C31234G01
    Type: 16‑Channel Compact Digital Input Module
    System: Ovation Distributed Control System
    1. Overview
    The 1C31234G01 is a high‑density, compact digital input module for Emerson Ovation DCS. It acquires 16 channels of discrete on/off signals from switches, relays, contactors, and field sensors, converting them into digital data for the controller. It features channel‑to‑channel isolation, fast response, and rugged construction for reliable operation in high‑noise, heavy‑industrial environments.
    2. Main Parameters
    • Channels: 16 isolated digital inputs
    • Signal type: 24VDC dry contact / wet sinking
    • Isolation: 1500VDC channel‑to‑channel
    • Response time: <1 ms (per channel)
    • Operating temp: -40℃ ~ +70℃
    • Dimensions (H×W×D): 121×52×166 mm
    • Weight: approx. 0.45 kg
    3. Model Definition
    • 1C31234: Ovation compact digital input series
    • G01: Hardware revision 01
    4. Application Industry
    • Thermal power & combined cycle plants
    • Oil, gas & petrochemical facilities
    • Chemical & pharmaceutical manufacturing
    • Water treatment & pulp/paper industry
    EMERSON © 1C31234G01 Ovation Digital Input Module
